Notes on Intermittents

If an intermittent code B115 is being set manipulate the related wiring while observing BCM data BD32. If the failure is induced, the reading will jump form its normal value to a reading outside the range of -34° to 96°C.

If the temperature of the sensor, displayed by BD32, is not reasonable close to a corresponding thermometer reading, check for poor terminal contact or replace sensor.

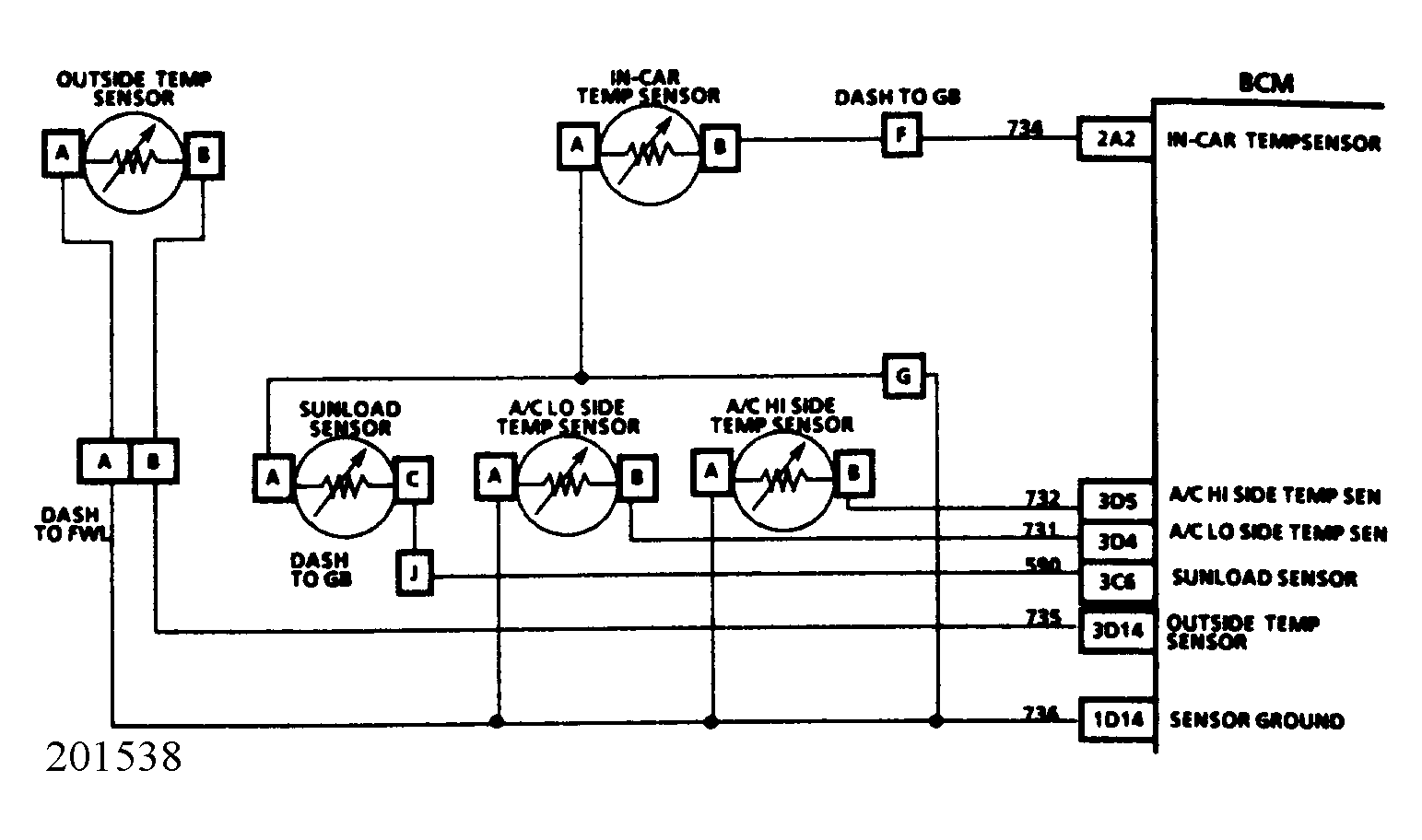

Fig 1: Code B115 - Schematic
G201558
Fig 2: Code B115 - Sun-Load Temperature Sensor
G4431
