Engine Knock, Poor Performance Or Economy - No Code 43

NOTE: This chart should only be used after all other causes of spark knock have been checked, timing EGR, MAP, engine temperature or excessive engine noise, ect.

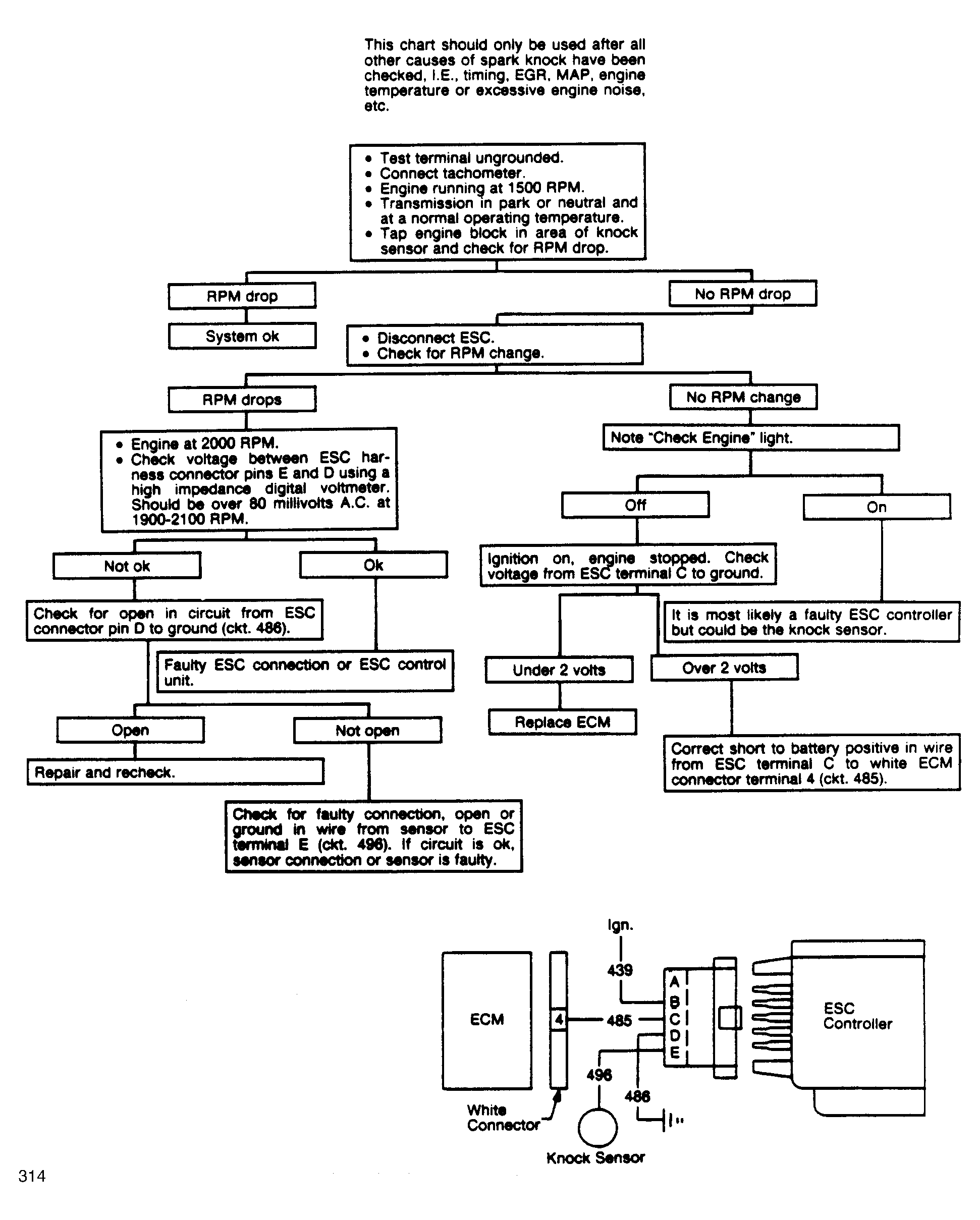

Fig 1: Chart 10: ESC System Check Flow Chart
G314

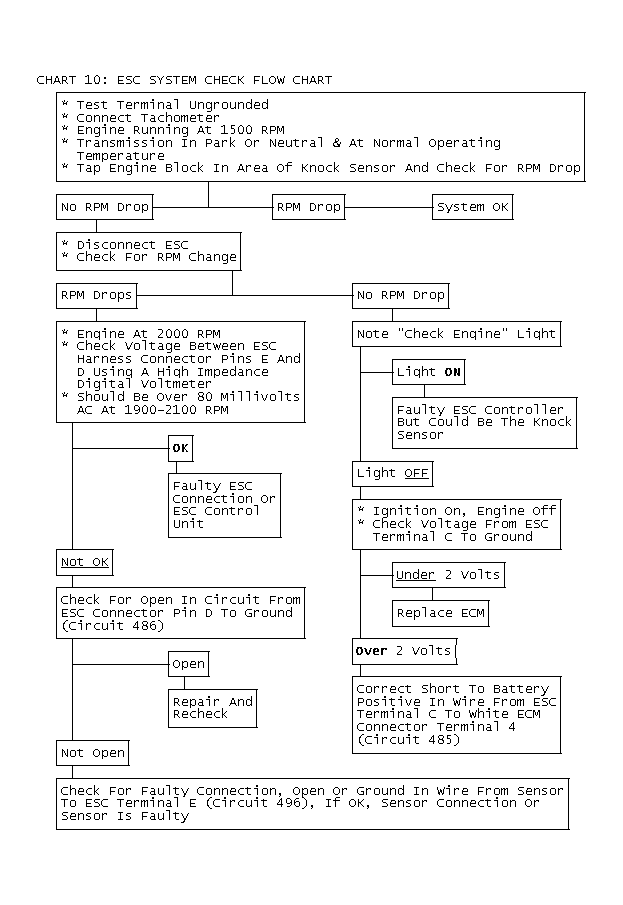

Fig 2: Chart 10: ESC System Check Flow Chart
GB0045661
