Temperature Control: Notes

This function is obtained from the sum of the input to the programmer and the output of the programmer.

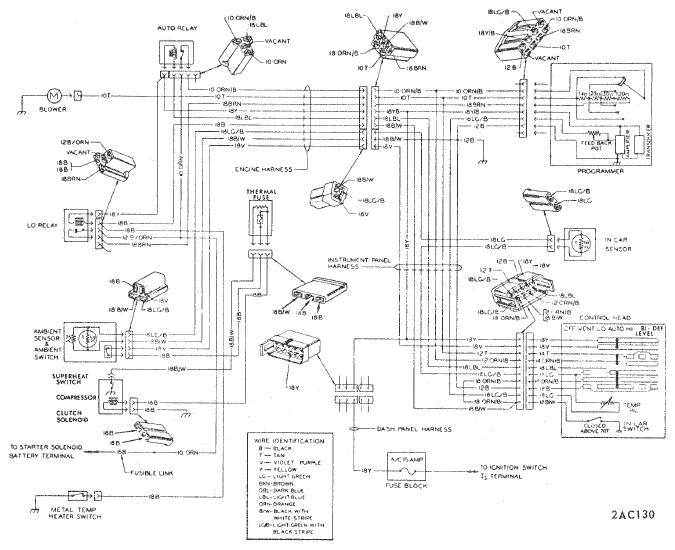

Fig 1: Wiring Harness Diagram
G09312008Courtesy of GENERAL MOTORS COMPANY
