Fastener Specifications

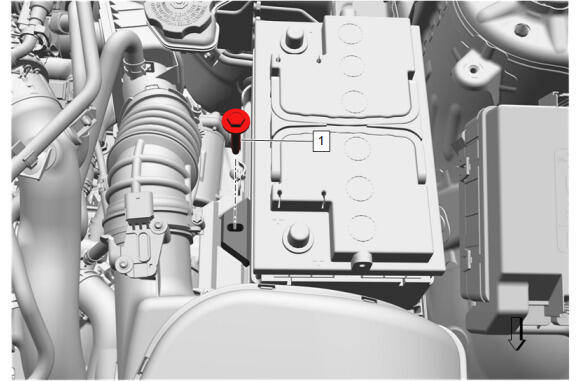

GM6205691Courtesy of GENERAL MOTORS COMPANY
Battery Hold Down Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Battery Hold Down Retainer Bolt - - 13 N.m (10 lb ft) Battery Replacement

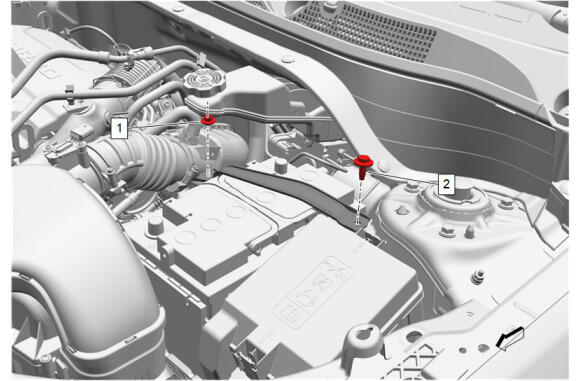

GM6205692Courtesy of GENERAL MOTORS COMPANY
Battery Hold Down Strap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Battery Hold Down Retainer Rod Nut - - 9 N.m (80 lb in) Battery Replacement
2 Battery Hold Down Strap Bolt - - 22 N.m (16 lb ft) Battery Replacement

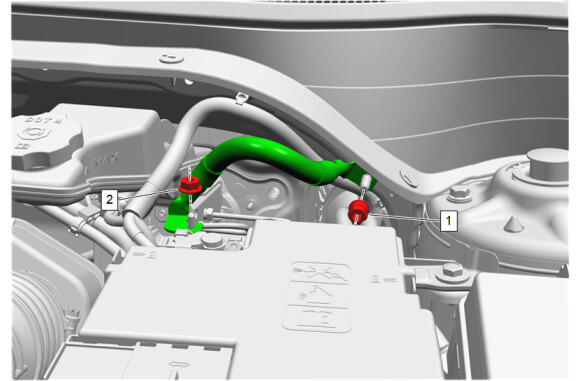

GM5961803Courtesy of GENERAL MOTORS COMPANY
Battery Negative Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Replacement
2 Battery Negative Cable Nut - - 9 N.m (80 lb in) Battery Negative Cable Replacement

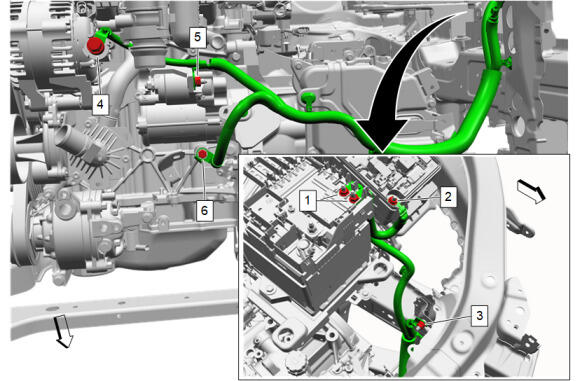

GM6205693Courtesy of GENERAL MOTORS COMPANY
Battery Positive Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuse Block Nut [2x] - - 15 N.m (11 lb ft) Battery Positive Cable Replacement
2 Battery Positive Cable Junction Block Nut - - 15 N.m (11 lb ft) Battery Positive Cable Replacement
3 Battery Positive Cable Nut @ Front Compartment Side Rail - - 22 N.m (16 lb ft) Battery Positive Cable Replacement
4 Battery Positive Cable Nut @ Generator - - 15 N.m (11 lb ft) Battery Positive Cable Replacement
5 Battery Positive Cable Nut @ Starter Solenoid - - 13 N.m (10 lb ft) Battery Positive Cable Replacement
6 Battery Positive Cable Bolt @ Engine Block - - 22 N.m (16 lb ft) Battery Positive Cable Replacement

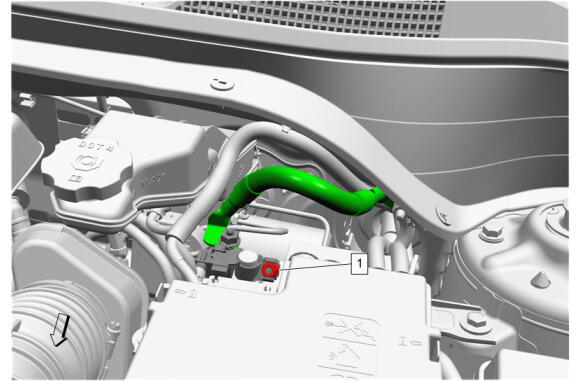

GM5961802Courtesy of GENERAL MOTORS COMPANY
Battery Sensor Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Battery Post Negative Cable Clamp Nut - - 5 N.m (44 lb in) Battery Negative Cable Disconnection and Connection

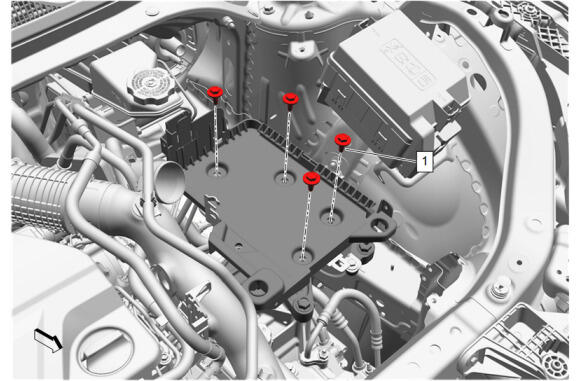

GM6205695Courtesy of GENERAL MOTORS COMPANY
Battery Tray

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Battery Tray Bolt [4x] - - 14 N.m (10 lb ft) Battery Tray Replacement

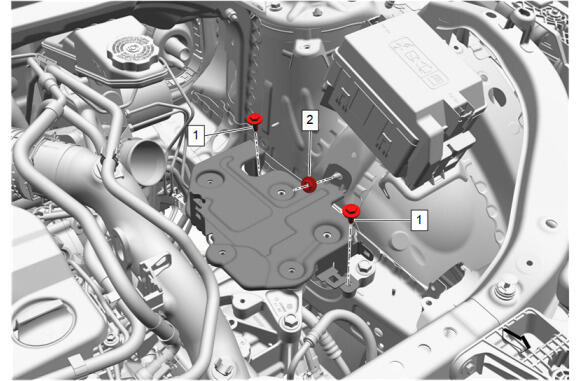

GM6205696Courtesy of GENERAL MOTORS COMPANY
Battery Tray Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Battery Tray Bracket Bolt [2x] - - 22 N.m (16 lb ft) Battery Tray Bracket Replacement
2 Battery Tray Bracket Nut - - 22 N.m (16 lb ft) Battery Tray Bracket Replacement

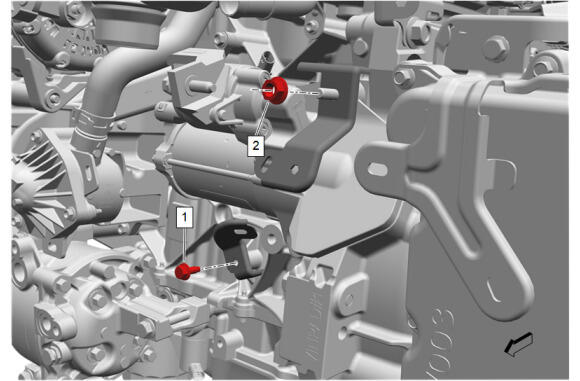

GM6205699Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Wiring Harness Bracket Bolt - - 9 N.m (80 lb in) Starter Replacement
2 Engine Wiring Harness Bracket Nut - - 22 N.m (16 lb ft) Starter Replacement

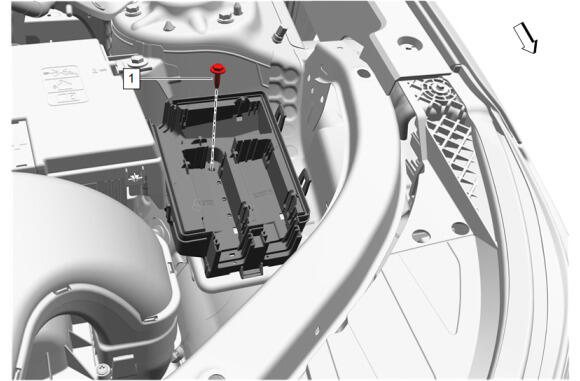

GM5961806Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Fuse Block Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Wiring Harness Bracket Bolt - - 9 N.m (80 lb in) Engine Wiring Harness Fuse Block Bracket Replacement

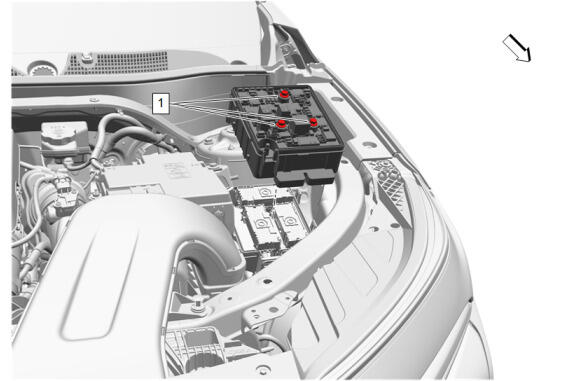

GM5961808Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Junction Block

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Wiring Harness Junction Block Bolt [3x] - - 9 N.m (80 lb in) Engine Wiring Harness Junction Block Replacement

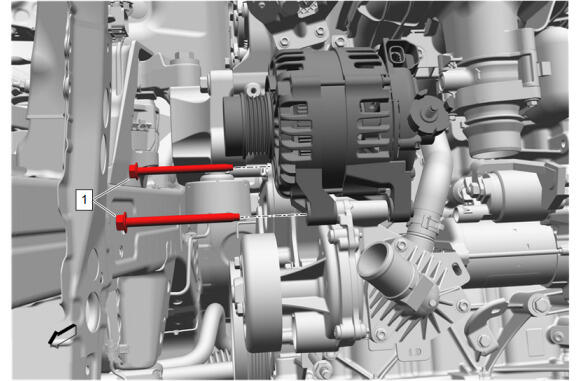

GM6205697Courtesy of GENERAL MOTORS COMPANY
Generator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Generator Bolt [2x] - - 22 N.m (16 lb ft) Generator Replacement

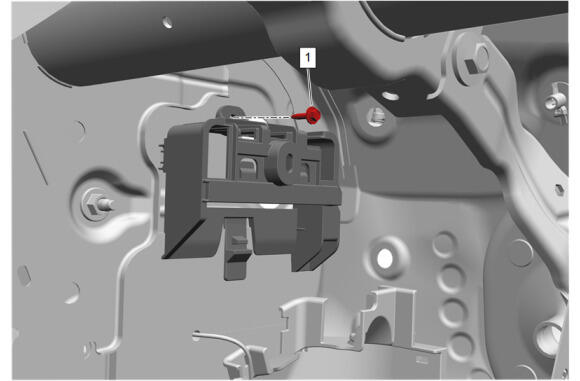

GM5961809Courtesy of GENERAL MOTORS COMPANY
Multifunction Power Supply Converter Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Multifunction Power Supply Converter Bracket Bolt - - 2.5 N.m (22 lb in) Multifunction Power Supply Converter Bracket Replacement

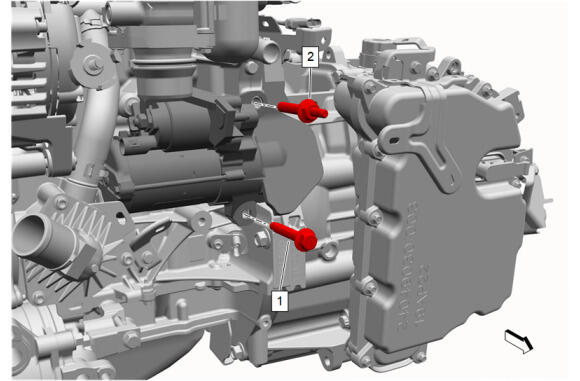

GM6205698Courtesy of GENERAL MOTORS COMPANY
Starter

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Starter Bolt - - 58 N.m (43 lb ft) Starter Replacement
2 Starter Stud - - 58 N.m (43 lb ft) Starter Replacement
