Installation Procedure

  1. GM5950912

    Low Frequency Console Antenna (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.

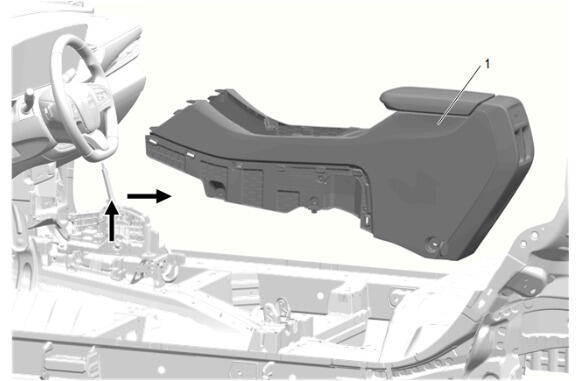

  4. GM5968846

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation
