Removal Procedure

  1. Open the liftgate.

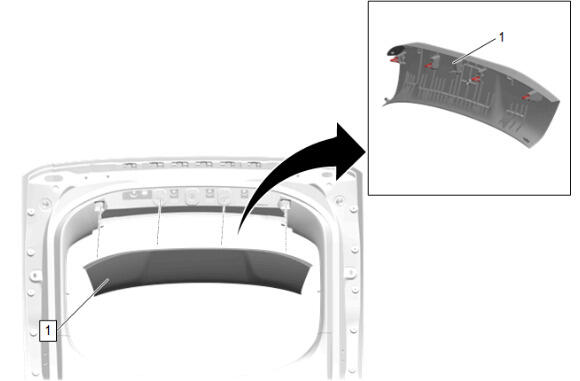

  2. GM5985152

    Release the retainers with a suitable plastic trim tool.

  3. Liftgate Upper Center Trim Finish Panel (1) - Remove

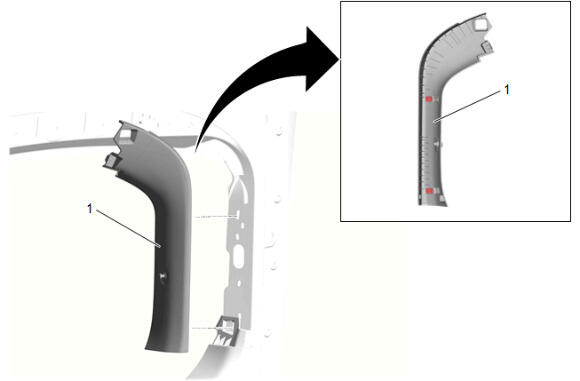

  4. GM5985157

    Release the retainers with a suitable plastic trim tool.

  5. Liftgate Upper Side Trim Finish Panel (1) - Remove

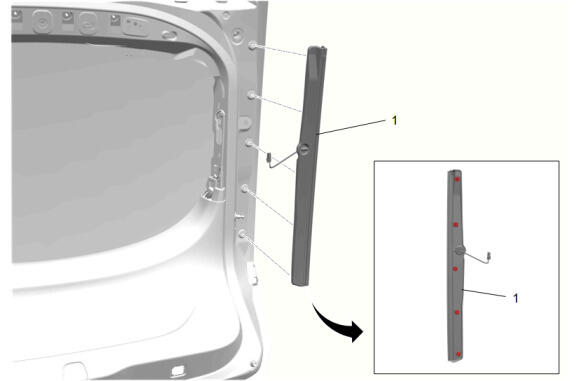

  6. GM5993483

    Release the retainers with a suitable plastic trim tool.

  7. Liftgate Side Sensor (1) - Remove
  8. Disconnect the electrical connector.
