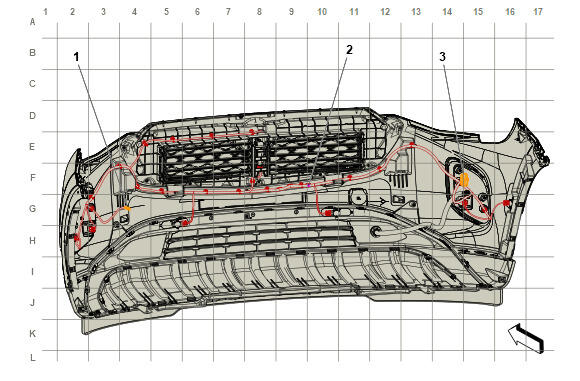

Front Object Alarm Sensor Harness Routing

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callout items in the following chart represent components shown in graphic above.

Items
1. X150 Body Wiring Harness to Front Object Alarm Sensor Wiring Harness (UKL/- UKL) X150 Body Wiring Harness to Front Object Alarm Sensor Wiring Harness (UV2)
2. J182 Front Object Alarm Sensor Wiring Harness
3. X151 Front Object Alarm Sensor Wiring Harness to Body Wiring Harness X151 Front Object Alarm Sensor Wiring Harness to Body Wiring Harness
