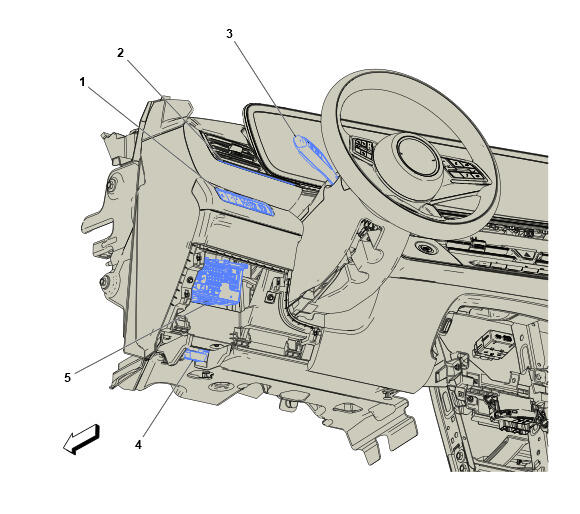

Left under instrument panel components
NOTE:
Callout items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. S36 Dimmer Switch S36 Dimmer Switch |
| 2. E1G Instrument Panel Light Conductor Lamp - Left E1G Instrument Panel Light Conductor Lamp - Left |
| 3. S78 Turn Signal Switch S78 Turn Signal Switch |
| 4. X84 Data Link Connector X84 Data Link Connector |
| 5. X51A Instrument Panel Wiring Harness Junction Block X51A Instrument Panel Wiring Harness Junction Block X1 , or X51A Instrument Panel Wiring Harness Junction Block X2 , or X51A Instrument Panel Wiring Harness Junction Block X3 , or X51A Instrument Panel Wiring Harness Junction Block X4 |
