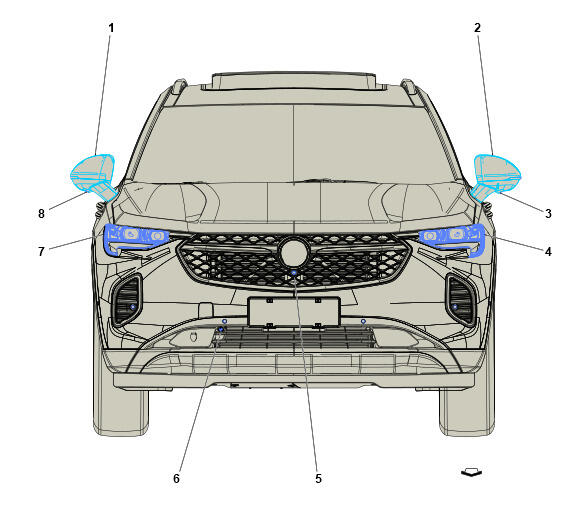

Front of Vehicle Components
NOTE:
Callout items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. A9B Outside Rearview Mirror - Passenger A9B Outside Rearview Mirror - Passenger |
| 2. A9A Outside Rearview Mirror - Driver A9A Outside Rearview Mirror - Driver |
| 3. B225L Side View Driver Information Camera - Left |
| 4. E13LA Front Headlamp - Left (UWN/-UWN) E13LA Front Headlamp - Left (- UWN) , or E13LA Front Headlamp - Left (UWN) |
| 5. B174G Front View Driver Information Camera - Grille (UKL/-UKL) B174G Front View Driver Information Camera - Grille (UV2) |
| 6. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 7. E13RA Front Headlamp - Right (UWN/-UWN) E13RA Front Headlamp - Right (- UWN) , or E13RA Front Headlamp - Right (UWN) |
| 8. B225R Side View Driver Information Camera - Right |
