Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Multifunction Power Supply Converter (3) @Multifunction Power Supply Converter Bracket (2) - Install
Connect the electrical connector.
Multifunction Energy Storage Capacitor Protector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Multifunction Power Supply Converter Nut (1) - Install and tighten [2x] 6 N.m (53 lb in)
Courtesy of GENERAL MOTORS COMPANY

Floor Rear Air Outlet Duct Adapter - Left Side (1) - Install - Floor Rear Air Outlet Duct Adapter Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Panel Carpet - Left Side (1) - Install - Front Floor Panel Carpet Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

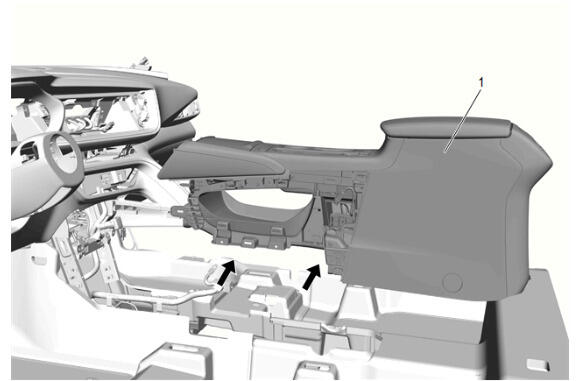

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
