Installation Procedure

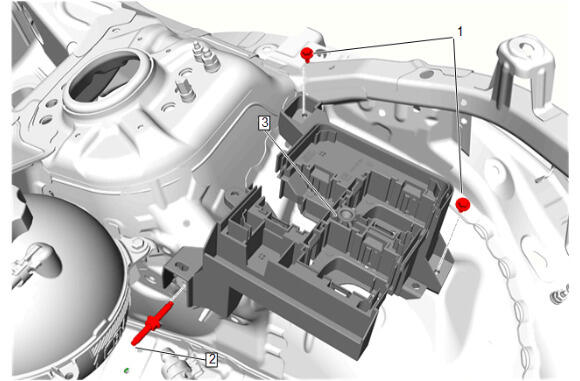

  1. GM6372857Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Fuse Block Bracket (3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Engine Wiring Harness Fuse Block Bracket Bolt (2) - Install and tighten - Fastener Specifications
  3. Engine Wiring Harness Fuse Block Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  4. Connect the wiring harness retainers.
  5. Engine Wiring Harness Junction Block - Install - Engine Wiring Harness Junction Block Replacement
