Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Battery Tray (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

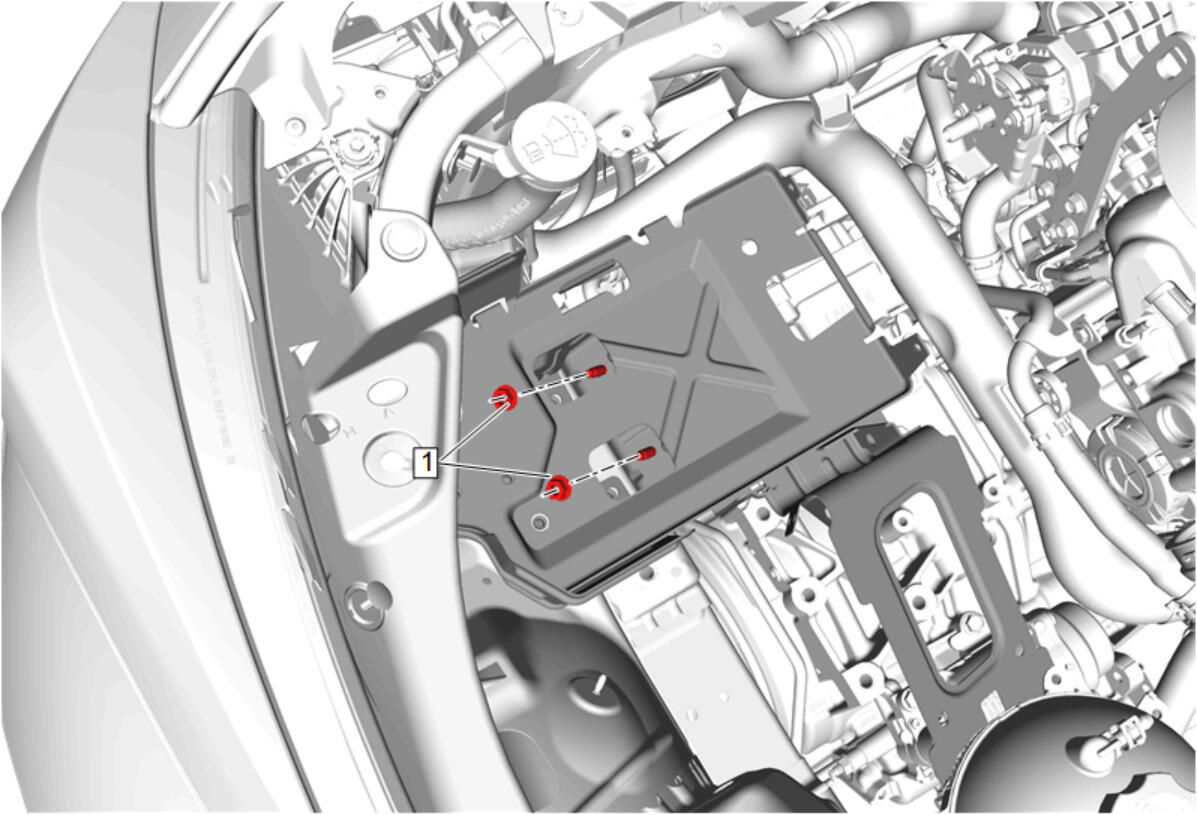

Battery Tray Brace Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

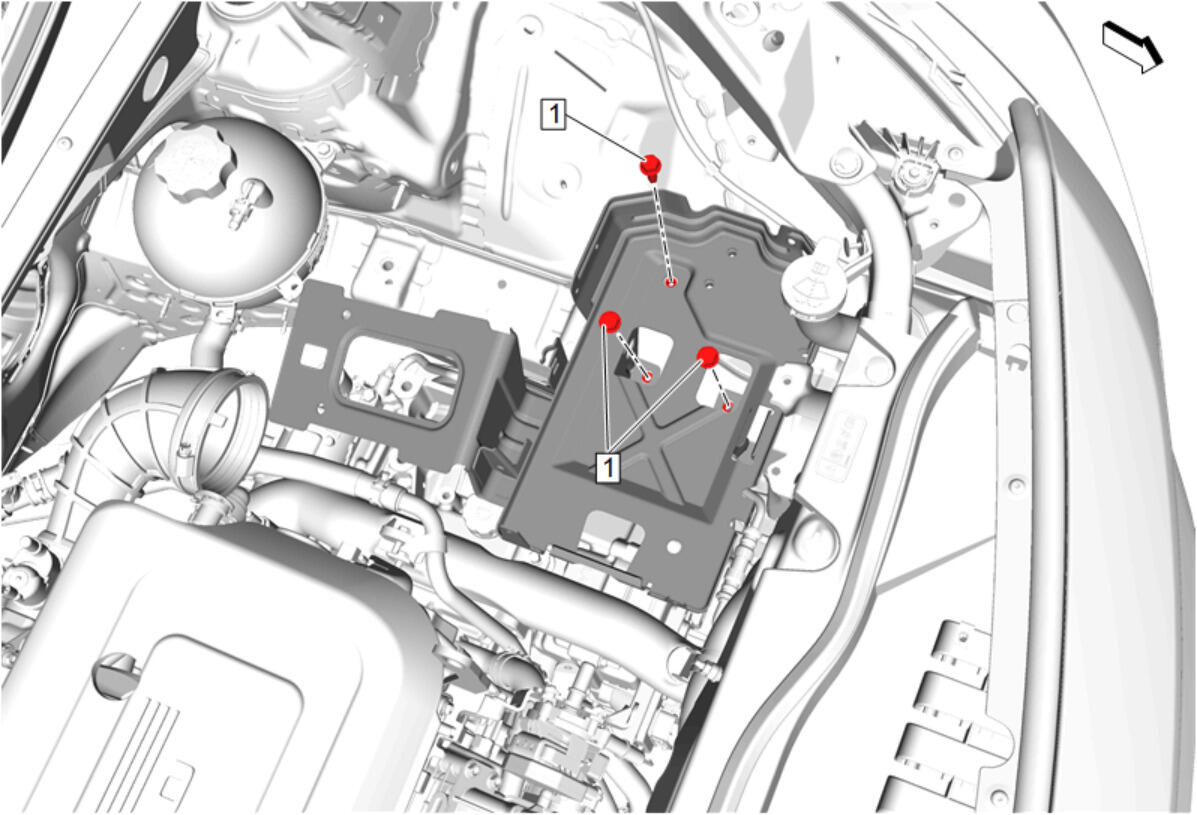

Battery Tray Support Bolt (1) - Install and tighten [3x] 22 N.m (16 lb ft)
Position the wiring harness and connect the harness retainers.
Courtesy of GENERAL MOTORS COMPANY

Engine Control Module Bracket (1) - Install - Engine Control Module Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Battery (1) - Install - Battery Replacement
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
