Front Seat Heater Vent Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

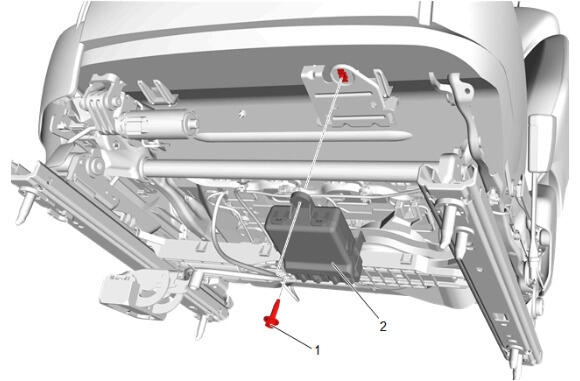

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Reposition the seat as necessary.
1	Front Seat Heater Control Module Bolt CAUTION: Fastener Caution Tighten 2 N.m (18 lb in)
2	Front Seat Heater Vent Control Module Procedure Release the retaining tabs. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Reposition the seat as necessary.

Front Seat Heater Control Module Bolt

CAUTION:

Tighten
2 N.m (18 lb in)

Front Seat Heater Vent Control Module

Procedure
