Installation Procedure

  1. GM6407220Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Sensor (2) - Install

  2. Rear closure hands free sensor rivet (1) - Install NEW rivets.

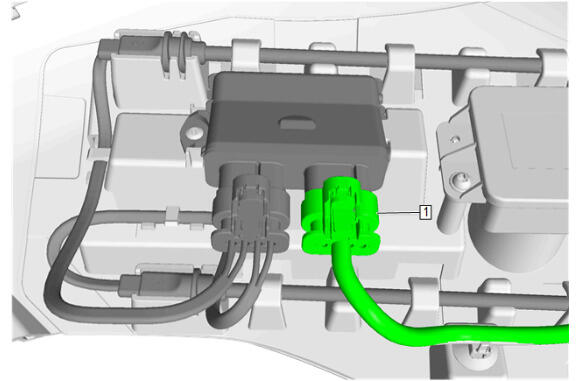

  3. GM6407219Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors (1).

  4. Rear Bumper Fascia - Install - Rear Bumper Fascia Removal and Installation
