Front Side Door Lock Cylinder Rod Replacement: Notes

Front Side Door Window Channel Front Retainer - Remove - Front Side Door Window Channel Front Retainer Replacement
Front Side Door Window Channel Retainer - Remove - Front Side Door Window Channel Retainer Replacement
Front Side Door Outside Handle - Remove - Front Side Door Outside Handle Replacement
Front Side Door Locking Rod Knob - Remove - Front Side Door Locking Rod Knob Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Screw (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

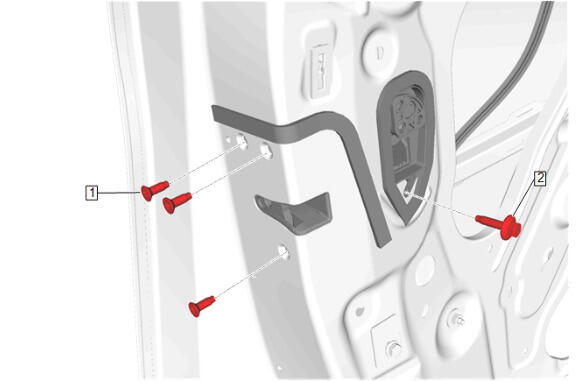

Front Side Door Latch Bolt (1) - Remove [3x]
Front Side Door Latch Bolt (2) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

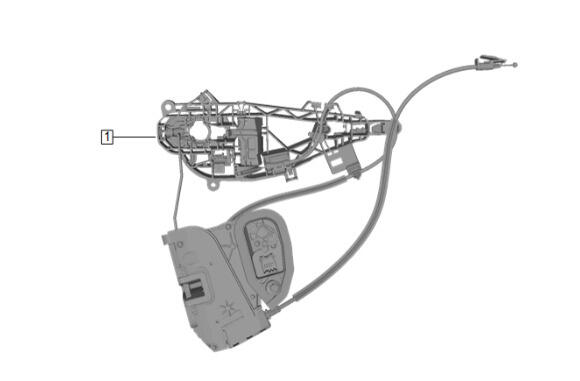

Remove the front side door latch with front side door outside handle bracket (1) from front side door.
Courtesy of GENERAL MOTORS COMPANY

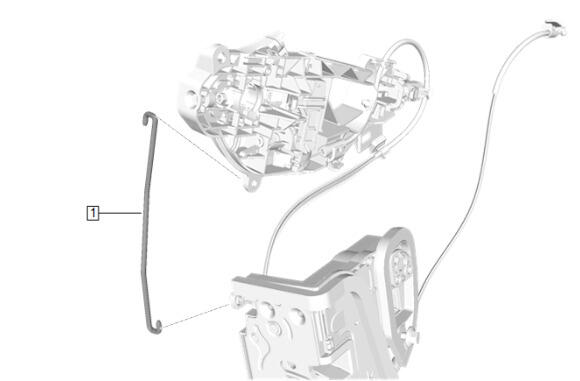

Front Side Door Lock Cylinder Rod (1) - Remove
