Removal Procedure

  1. Front Bumper Fascia - Remove - Front Bumper Fascia Removal and Installation

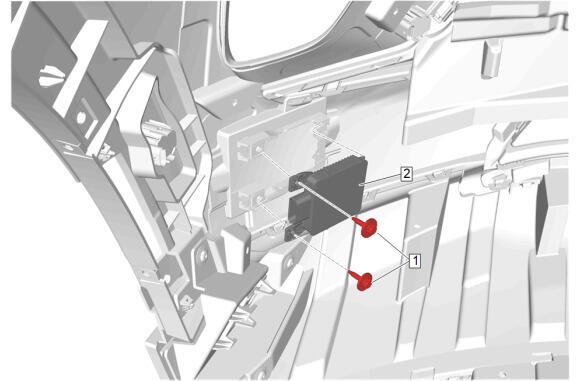

  2. GM6408464Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Front Short Range Radar Sensor Bolt - Remove [2x]
    4. NOTE:

    Observe the mounting location of the short range radar sensor to ensure proper reinstallation.

  4. Front Short Range Radar Sensor (2) - Remove
