Installation Procedure

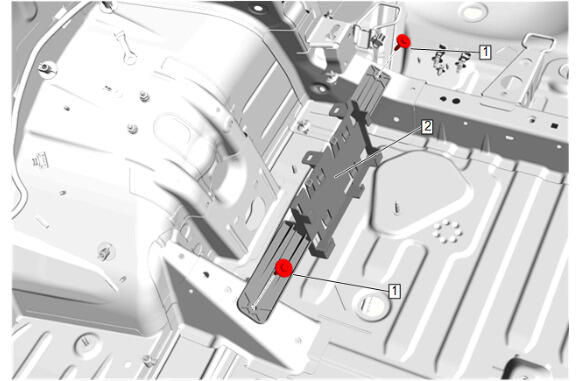

  1. GM6396449Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Communication Interface Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Communication Interface Module - Install - Communication Interface Module Replacement
