Installation Procedure

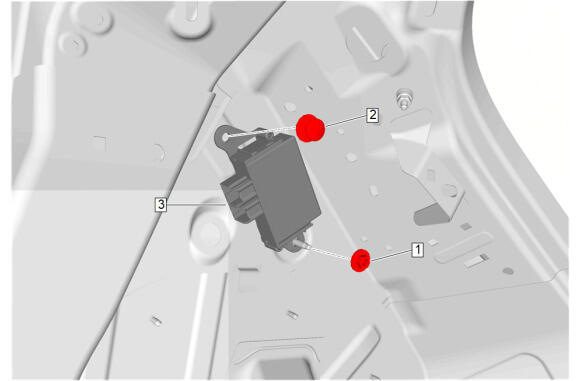

  1. GM6408480Courtesy of GENERAL MOTORS COMPANY

    Parking Assist Control Module (3) - Install

  2. Parking Assist Control Module Retainer (2) - Install
    3. CAUTION:

    Fastener Caution

  3. Parking Assist Control Module Nut (1) - Install and tighten 4.5 N.m (40 lb in)
  4. Connect the electrical connector.
  5. Quarter Window Trim Finish Panel - Right Side - Install - Quarter Window Trim Finish Panel Replacement
  6. Perform the necessary programming and setup procedure:Control Module References
