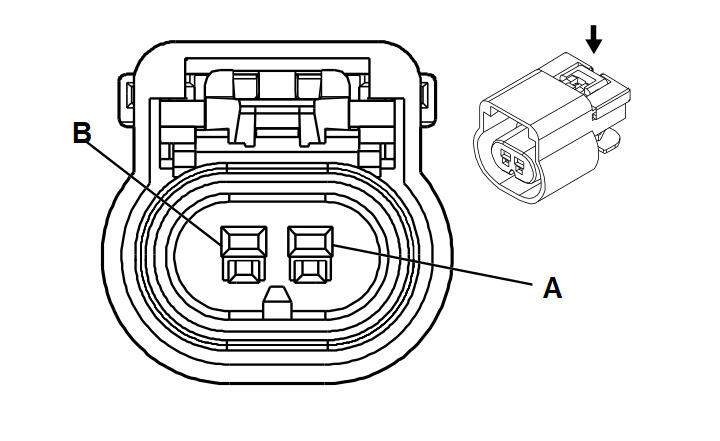

R6A Terminating Resistor - High Speed Bus

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Chassis Rear Wiring Harness OEM Connector: 15326802 Service Connector: Service by Harness - See Part Catalog Description: 2-Way F 150 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-4A (PU)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
A	0.35 0.35	BU BU	2500 2500	High Speed GMLAN Serial Data [+] 1 High Speed GMLAN Serial Data [+] 1	I I	F48 -F48
B	0.35 0.35	WH WH	2501 2501	High Speed GMLAN Serial Data [-] 1 High Speed GMLAN Serial Data [-] 1	I I	F48 -F48
