Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

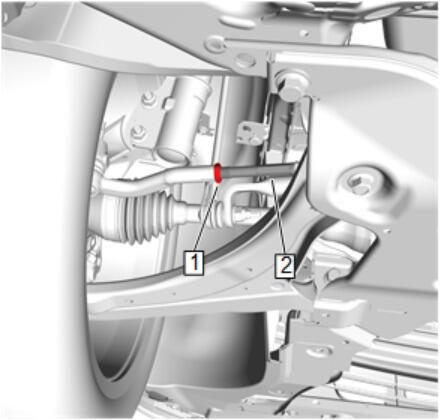

  1. GM5248130Courtesy of GENERAL MOTORS COMPANY

    Ensure that the steering wheel is set in a straight ahead position and centered.

  2. Steering Linkage Tie Rod Adjuster Nut (1) - Loosen
  3. Adjust the toe to specification by turning the adjuster (2). Wheel Alignment Specifications
    4. CAUTION:

    Fastener Caution

  4. Steering Linkage Tie Rod Adjuster Nut (1) - tighten 75 N.m (55 lb ft)
