Removal Procedure

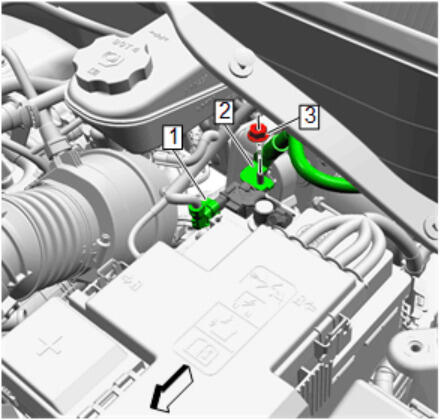

Electrical Connector (1) - Disconnect
- Battery Negative Cable Nut (3) @Battery Sensor - Remove
- Battery Negative Cable (2) - Remove

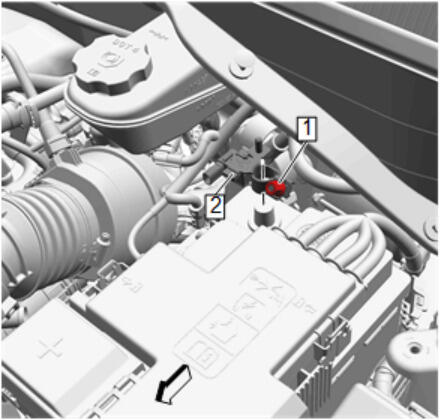

Battery Negative Post Clamp Nut (1) - Loosen
- Battery Sensor (2) - Remove
WARNING:
Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.
