Windshield Wiper System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

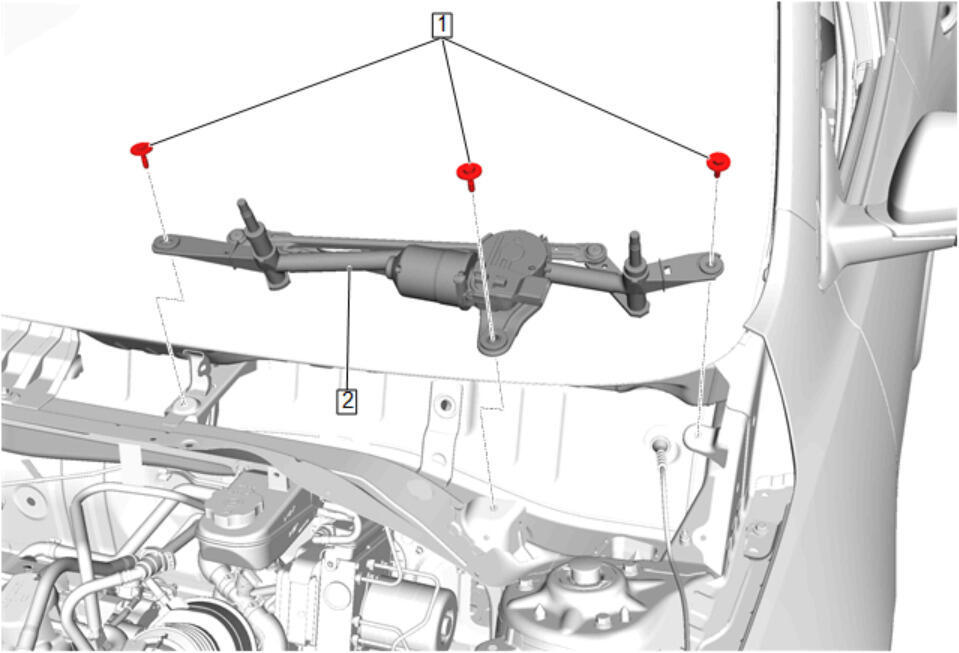

Callout	Component Name
Preliminary Procedure Windshield Wiper System Module Shield Replacement
1	Windshield Wiper System Module Bolt [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Windshield Wiper System Module Procedure Disconnect the electrical connector. Transfer components as necessary. Adjust the windshield wiper arm, if necessary. Windshield Wiper Arm Adjustment

Callout

Component Name

Windshield Wiper System Module Bolt [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Windshield Wiper System Module

Procedure
