Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

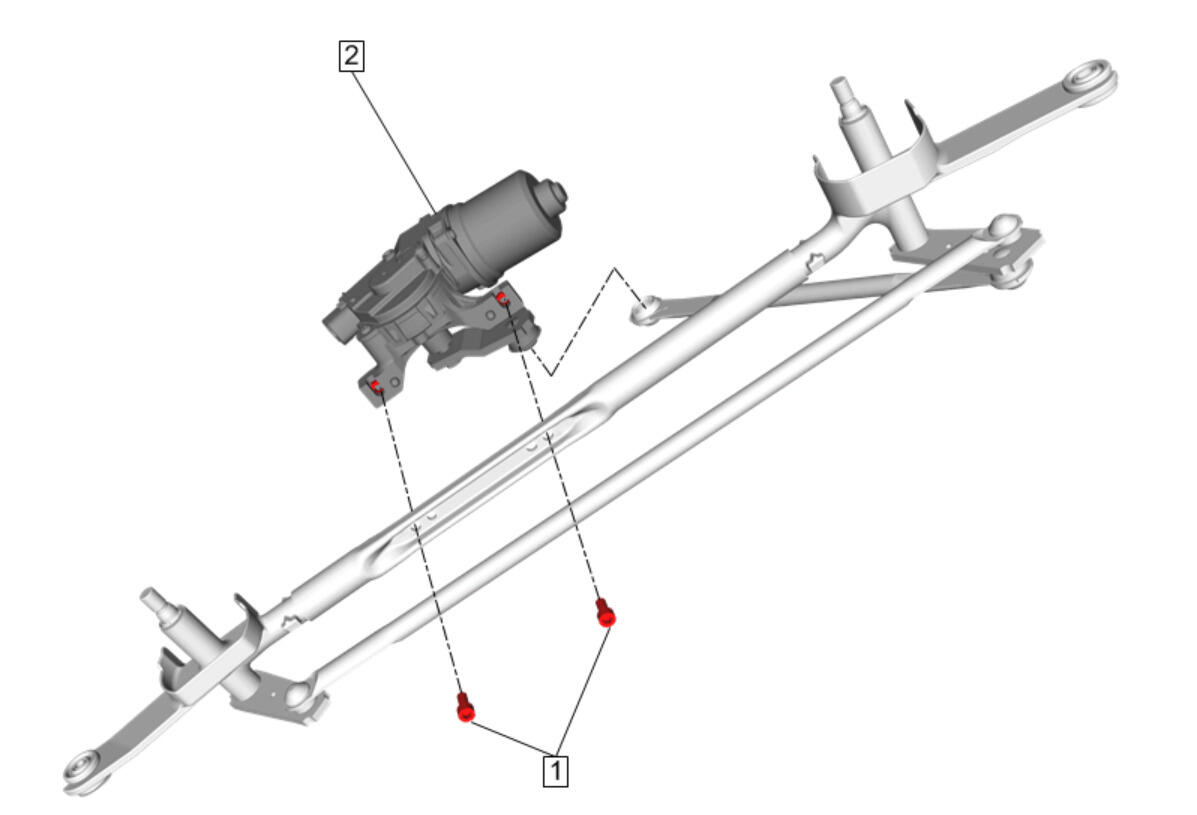

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Windshield Wiper Transmission Replacement
1	Windshield Wiper Motor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Windshield Wiper Motor Procedure Use the B0-39232 Wiper Linkage Separator to separate the transmission drive link from the wiper motor crank arm ball stud. Use the B0-39529 Wiper Linkage Installer to install the transmission drive link onto the wiper motor crank arm ball stud. NOTE: Apply a small amount of grease to the inner cup on the transmission link to aid in installation. Special Tools B0-39232 Wiper Linkage Separator B0-39529 Wiper Linkage Installer Equivalent regional tools:Special Tools

Callout

Component Name

Preliminary Procedure
Windshield Wiper Transmission Replacement

Windshield Wiper Motor Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Windshield Wiper Motor

Procedure

Use the B0-39232 Wiper Linkage Separator to separate the transmission drive link from the wiper motor crank arm ball stud.
Use the B0-39529 Wiper Linkage Installer to install the transmission drive link onto the wiper motor crank arm ball stud.

NOTE:

Apply a small amount of grease to the inner cup on the transmission link to aid in installation.

Special Tools

B0-39232 Wiper Linkage Separator
B0-39529 Wiper Linkage Installer

Equivalent regional tools:Special Tools
