Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

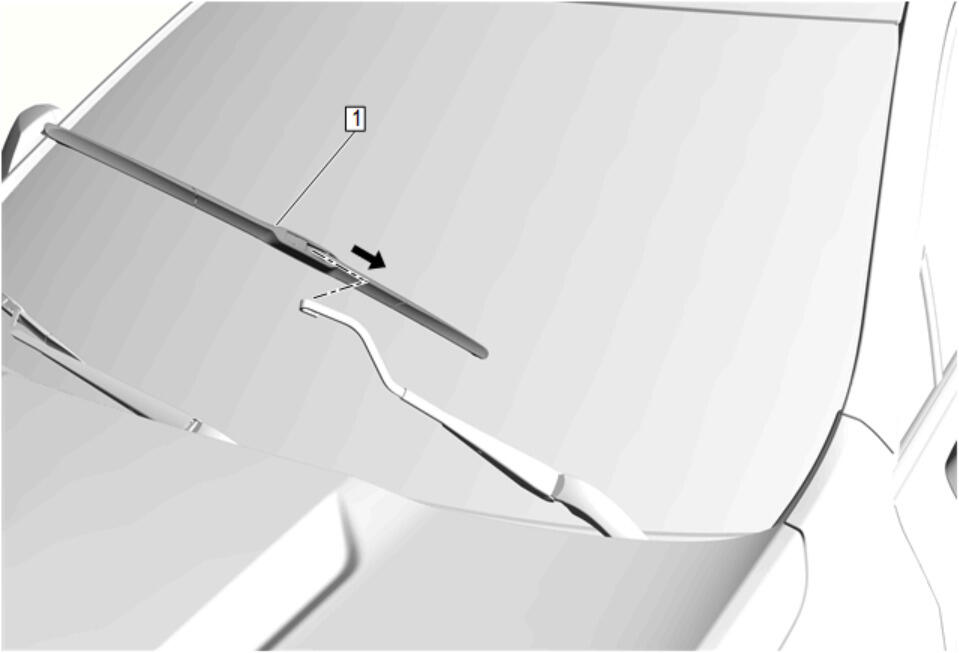

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Windshield Wiper Blade NOTE: Do not lock wiper arm away from the windshield without a wiper blade installed on the arm. Procedure Lift the windshield wiper arm from the windshield. Disengage the windshield wiper blade lock from the windshield wiper arm. Release the retention tab securing the windshield wiper blade to the windshield wiper arm. Remove the windshield wiper blade.

Callout

Component Name

Windshield Wiper Blade

NOTE:

Do not lock wiper arm away from the windshield without a wiper blade installed on the arm.

Procedure

Lift the windshield wiper arm from the windshield.
Disengage the windshield wiper blade lock from the windshield wiper arm.
Release the retention tab securing the windshield wiper blade to the windshield wiper arm.
Remove the windshield wiper blade.
