Windshield Multifunction Sensor Mount Bracket Cover Replacement (without UHX)

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

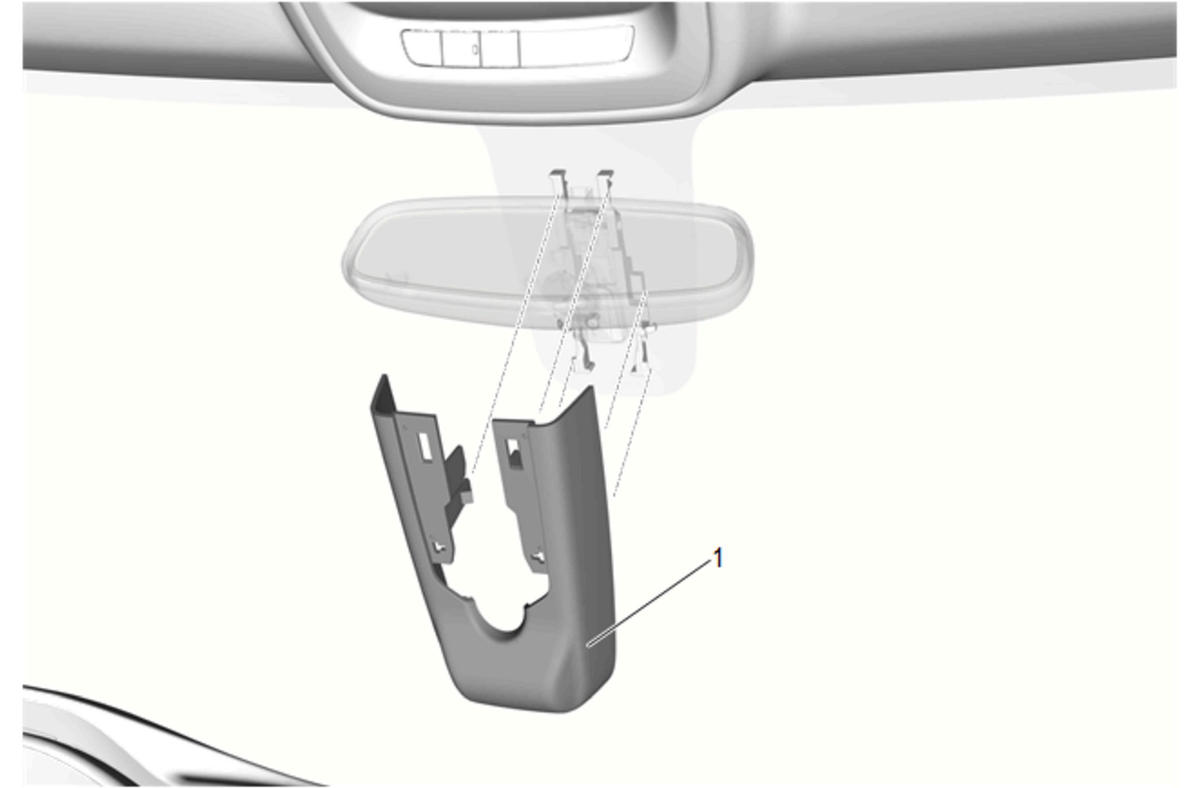

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement (without UHX) , or Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement (with UHX)
1	Windshield Multifunction Sensor Mount Bracket Cover Procedure Use a plastic trim tool to release the tabs. Pull the cover away from the windshield to remove.

Callout

Component Name

WARNING:

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement (without UHX) , or Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement (with UHX)

Windshield Multifunction Sensor Mount Bracket Cover

Procedure

Use a plastic trim tool to release the tabs.
Pull the cover away from the windshield to remove.
