Removal Procedure
WARNING:
WARNING:
- Relieve the fuel system pressure. Fuel Pressure Relief
- Drain the fuel tank. Fuel Tank Draining
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (without KL9) , or Battery Negative Cable Disconnection and Connection (with KL9)
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Exhaust Muffler @ Vehicle - Remove - Exhaust Muffler Replacement (LE2)
- Rear Wheelhouse Liner - Right Side @ Vehicle - Remove - Rear Wheelhouse Liner Replacement

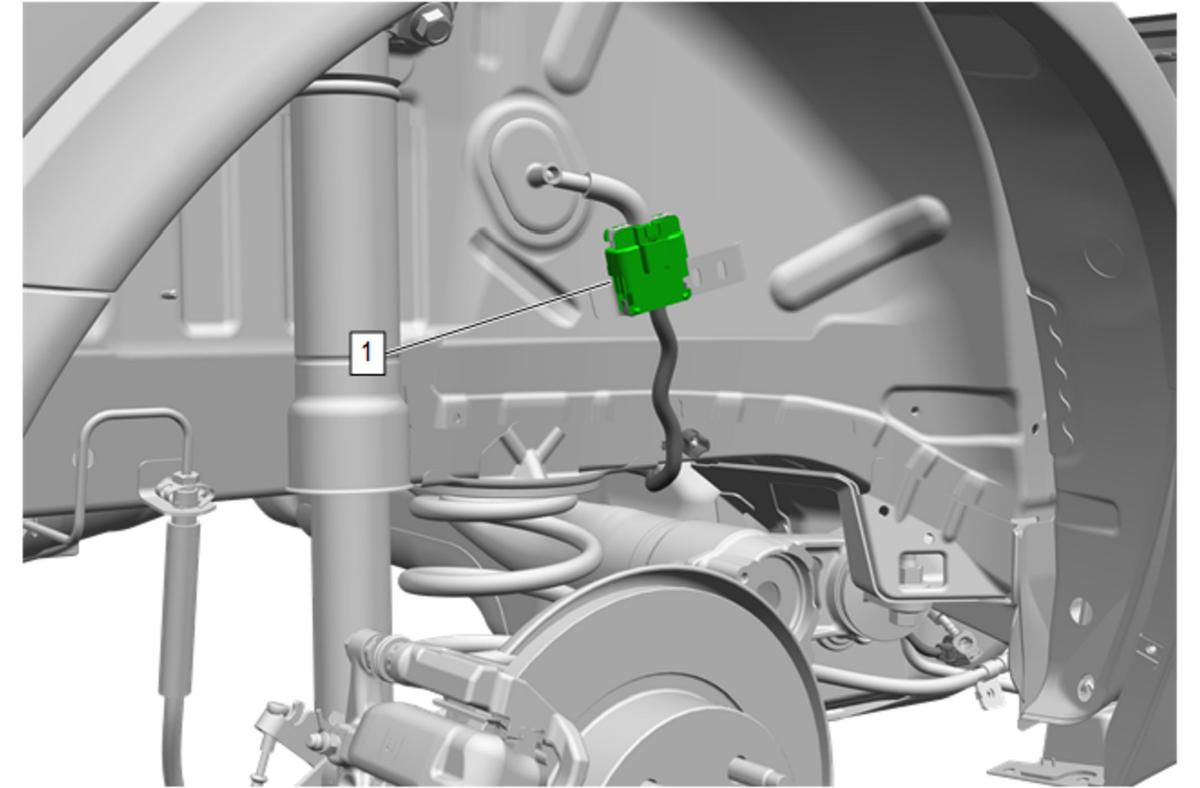

Wiring Harness (1) - Disconnect [2x]
- Wiring Harness Retainer - Release [4x]

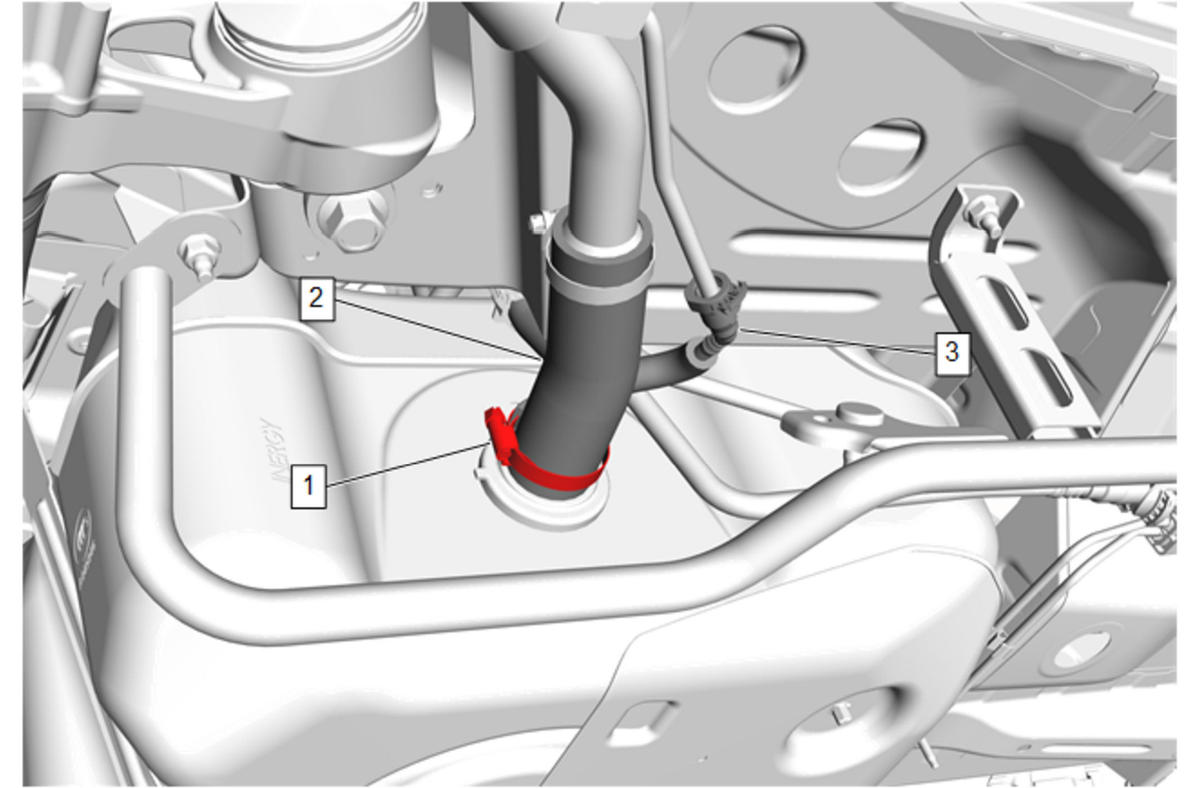

Fuel Tank Filler Hose Clamp (1) @ Fuel Tank Filler Hose - Loosen
- Fuel Tank Filler Hose (2) @ Fuel Tank - Disconnect
- Evaporative Emission Pipe (3) @ Fuel Tank Filler Pipe - Disconnect - Plastic Collar Quick Connect Fitting Service
-
Evaporative Emission Canister Air Inlet Hose (1) @ Evaporative Emission Canister - Disconnect

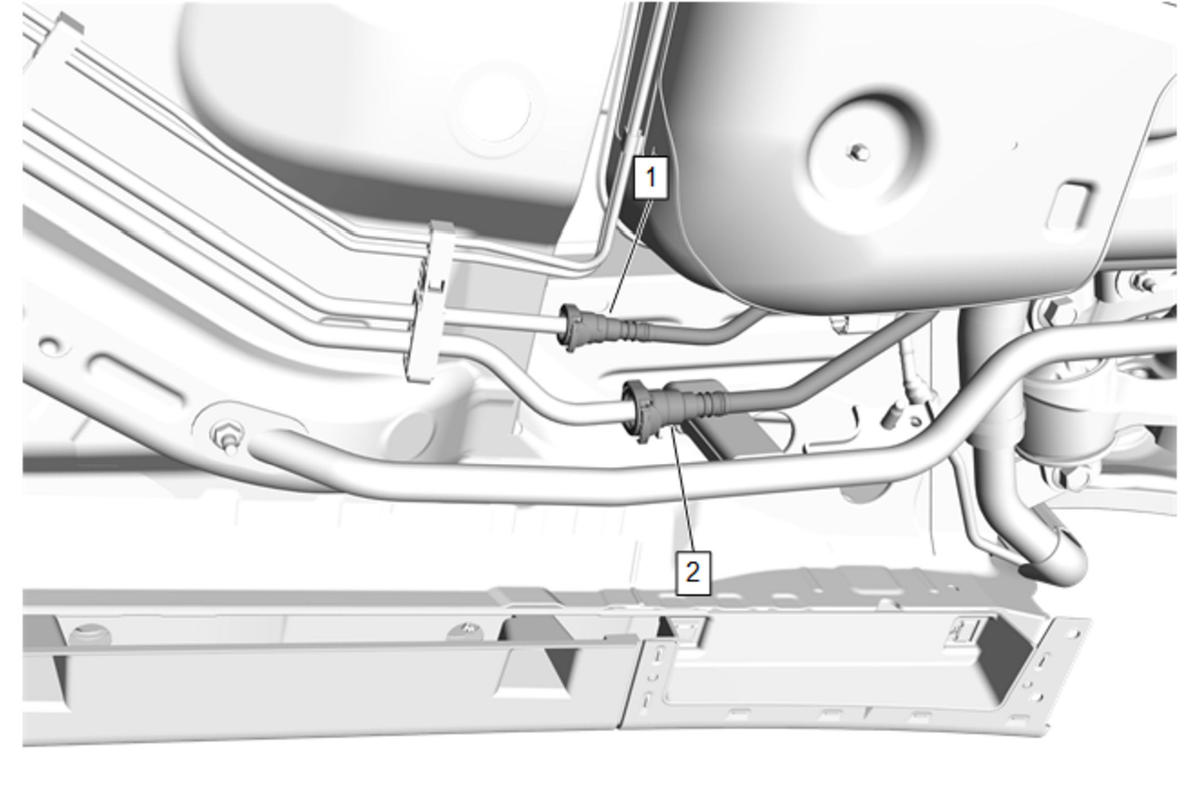

Fuel Feed Pipe-Fuel Tank (1) @ Fuel Feed Pipe-Underbody - Disconnect - Plastic Collar Quick Connect Fitting Service
- Evaporative Emission Pipe-Fuel Tank (2) @ Evaporative Emission Pipe-Underbody - Disconnect - Plastic Collar Quick Connect Fitting Service
Place a suitable adjustable jack under the fuel tank.

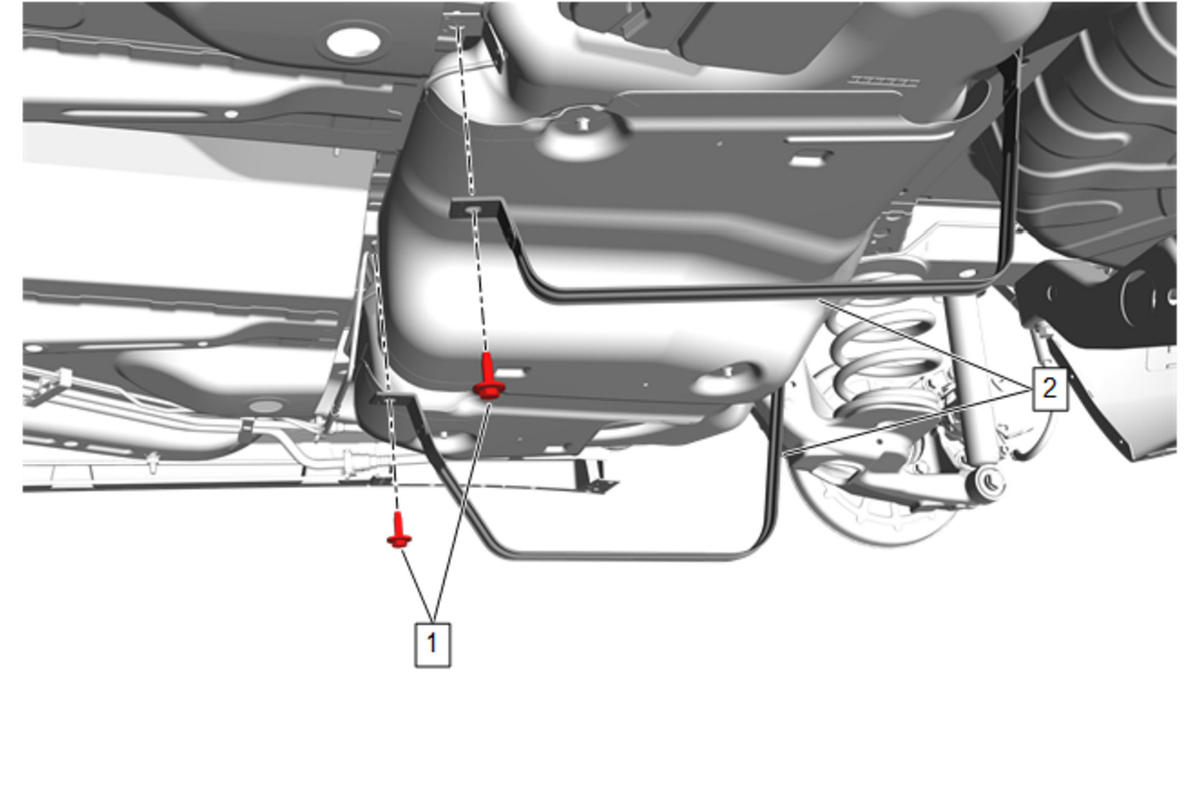

- Fuel Tank Strap Bolt (1) - Remove [2x]
- Fuel Tank Strap (2) - Remove [2x]

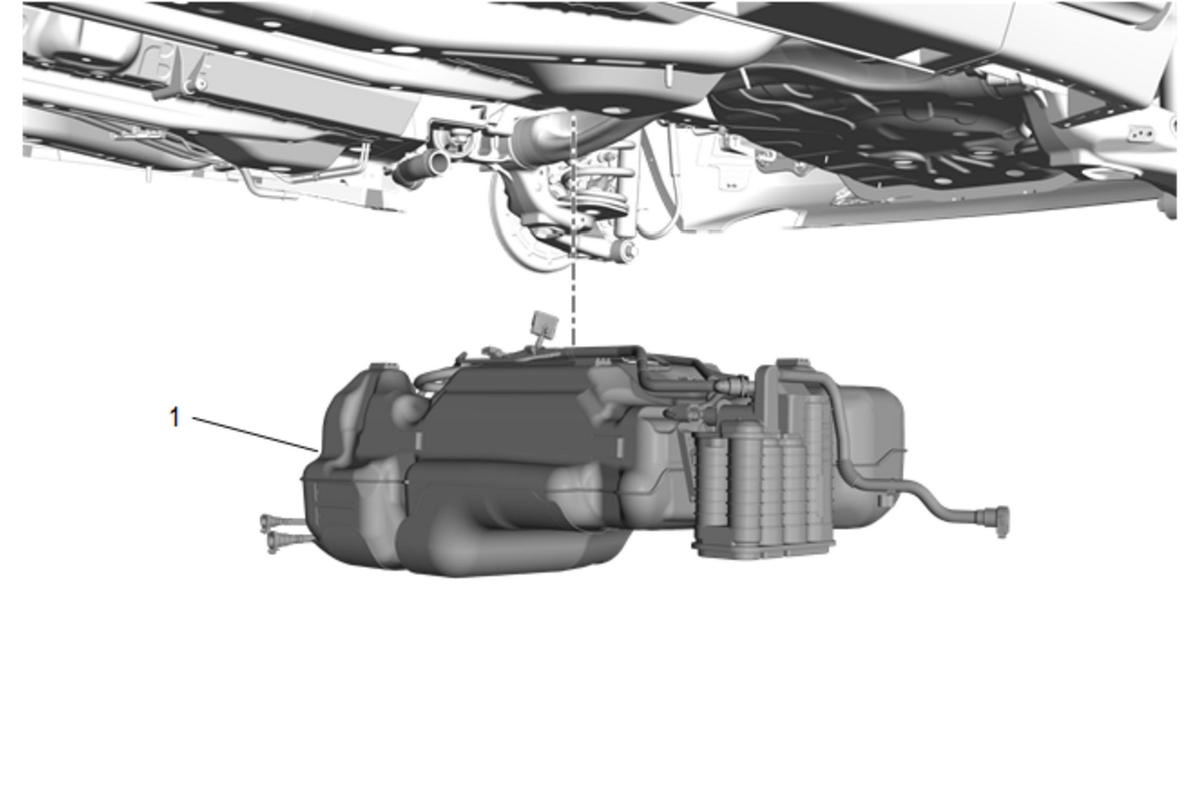

Fuel Tank (1) - Remove
- Transfer components as necessary.
