Electronic Suspension Front Position Sensor Link Ball Stud Replacement: Installation

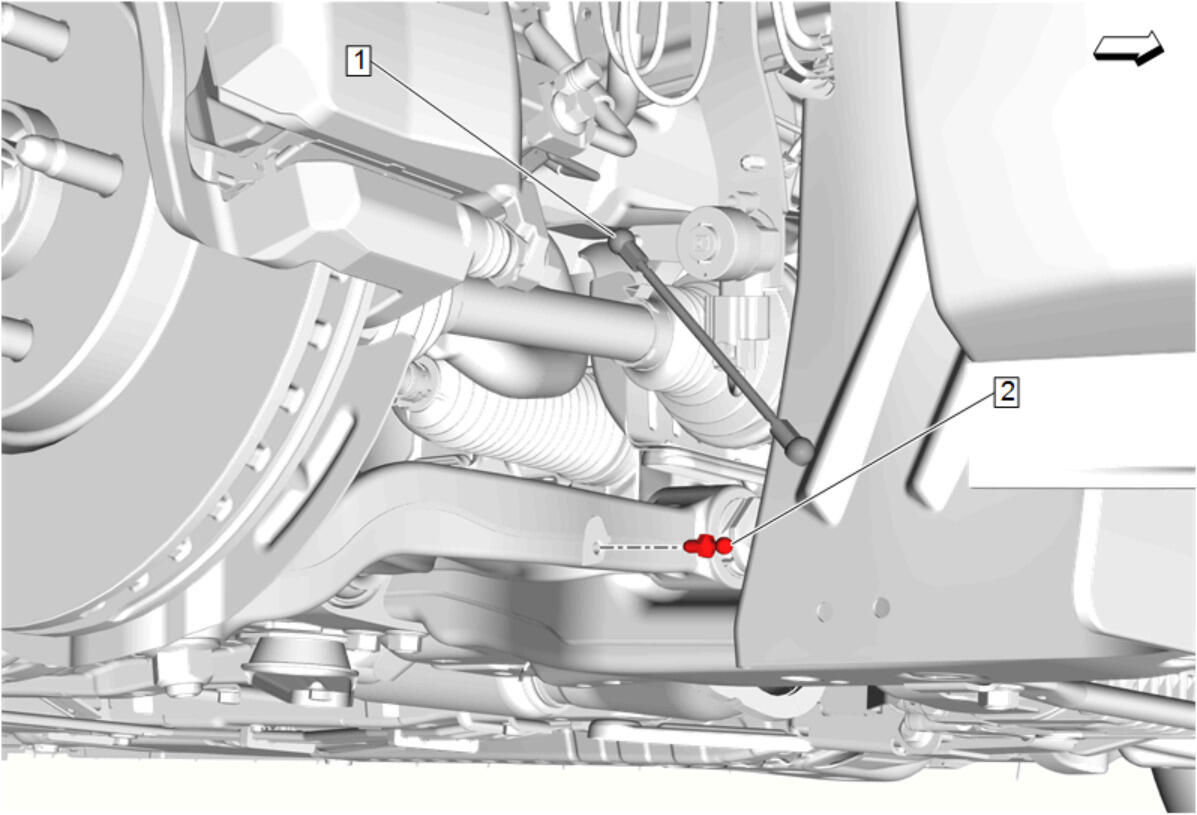

  1. GM5083900Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Electronic Suspension Front Position Sensor Link Ball Stud (2) - Install and tighten 9 N.m (80 lb in)

  2. Connect the electronic suspension front position sensor link (1) to the electronic suspension front position sensor link ball stud (2).
  3. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  4. Remove the support and lower the vehicle.
