Fuel Tank Shield Replacement (AWD)

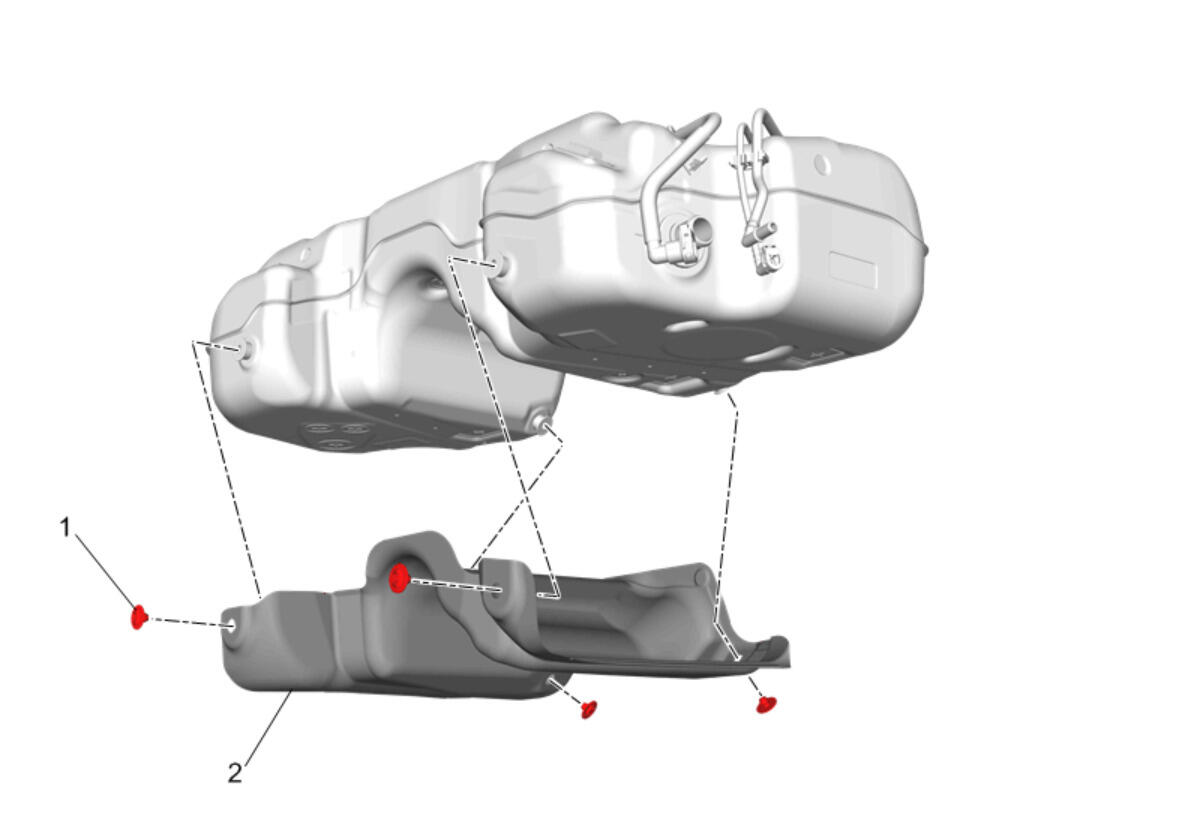

GM5048628Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement (AWD)
1 Fuel Tank Shield Retainer [4x]
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Shield
