Installation Procedure

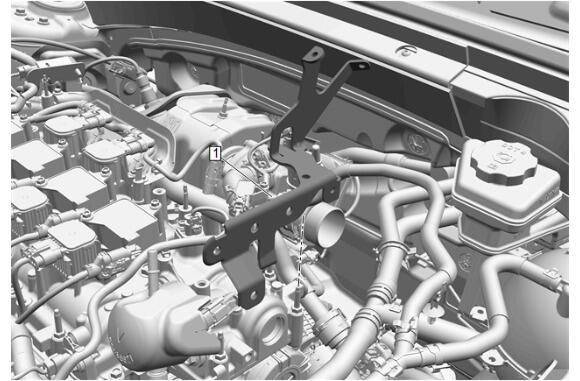

  1. GM5612820Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Front Pipe Bracket (1) - Install

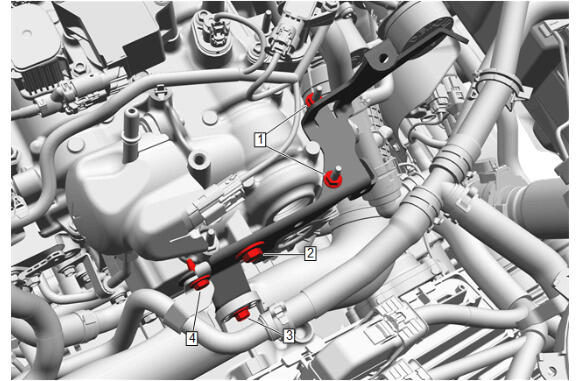

  2. GM5612819Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Engine Coolant Thermostat Housing Pipe Bolt (4) - Install and tighten 9 N.m (80 lb in)

  3. Charge Air Cooler Inlet Air Tube Bolt (3) - Install and tighten 9 N.m (80 lb in)
  4. Fuel Injection Fuel Feed Pipe Bolt (2) - Install and tighten 22 N.m (16 lb ft)
  5. Fuel Injection Fuel Feed Front Pipe Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)

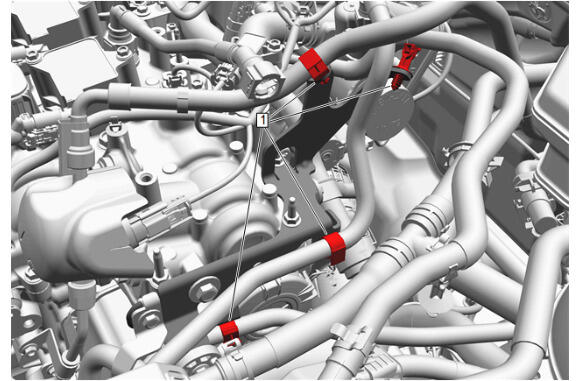

  6. GM5612818Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install [4x]

  7. Turbocharger Outlet Duct Connector - Install - Turbocharger Outlet Duct Connector Replacement
  8. Air Cleaner Outlet Intermediate Duct - Install - Air Cleaner Outlet Intermediate Duct Replacement
