Rear Seat Heater Vent Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

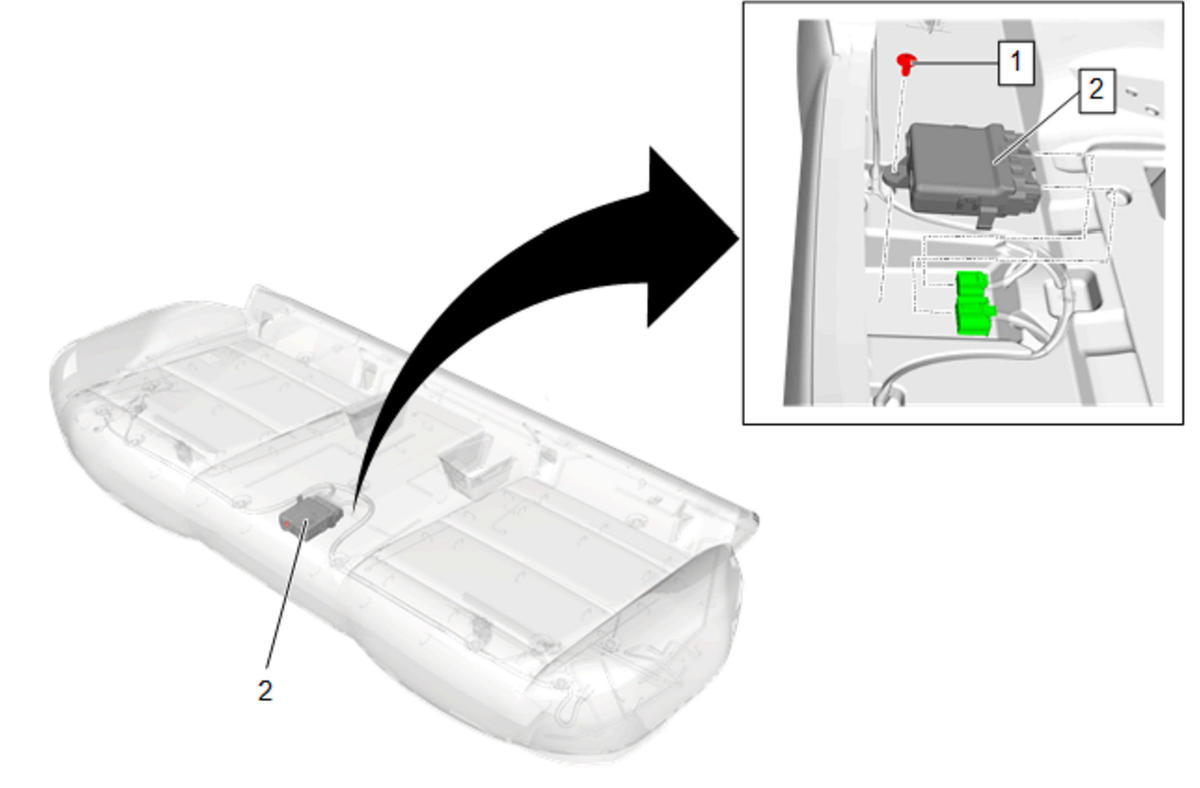

Callout	Component Name
Preliminary Procedure Rear Seat Cushion Removal and Installation (without Heater) , or Rear Seat Cushion Removal and Installation (with Heater)
1	Rear Seat Heater Vent Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Seat Heater Vent Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Rear Seat Heater Vent Control Module Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Seat Heater Vent Control Module

Procedure
