Front Seat Heater Control Module Bracket Replacement (A7H)
Front Seat Heater Control Module Bracket Replacement (A7H)
Courtesy of GENERAL MOTORS COMPANY

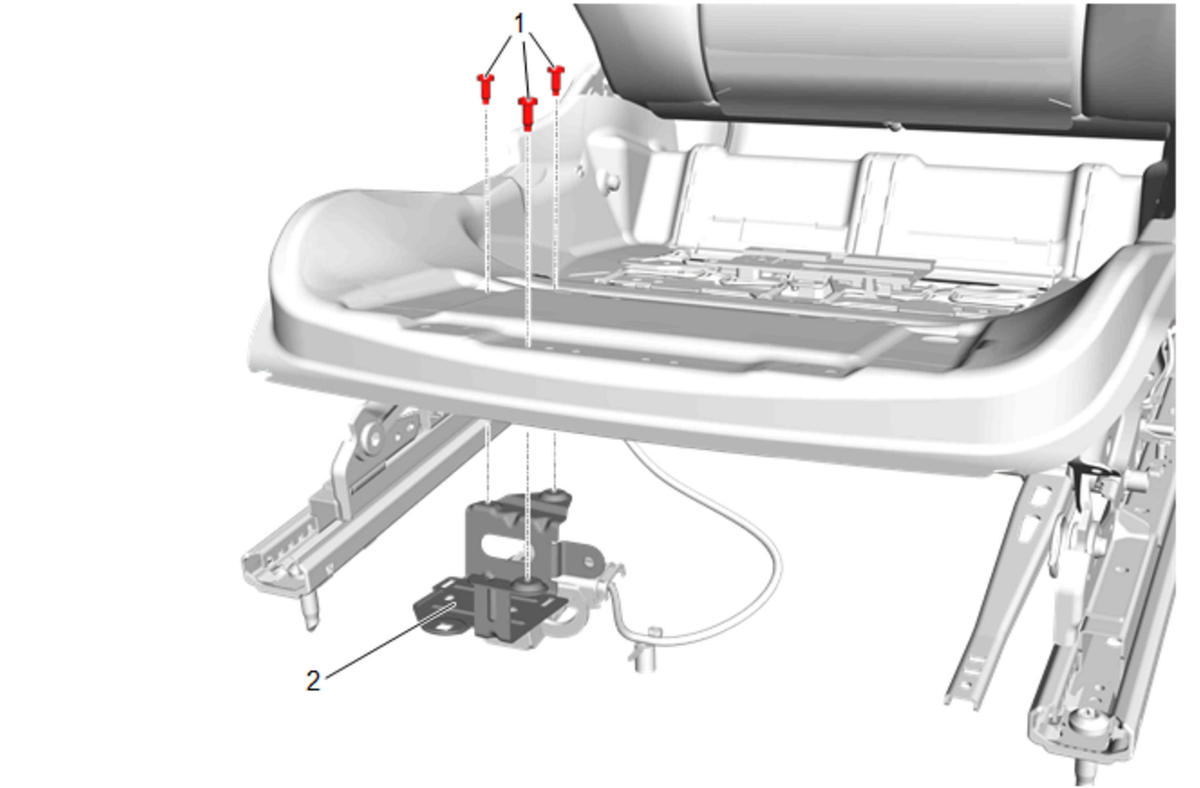

Callout
Component Name
Preliminary Procedures
Front Seat Cushion Cover and Pad Replacement
Front Seat Heater Vent Control Module Replacement (A7H)
1
Front Seat Heater Control Module Bracket Bolt [3x]
CAUTION:
Fastener Caution
Tighten
4.7 N.m (42 lb in)
2
Front Seat Heater Control Module Bracket
