Front Side Door Window Regulator Motor Replacement

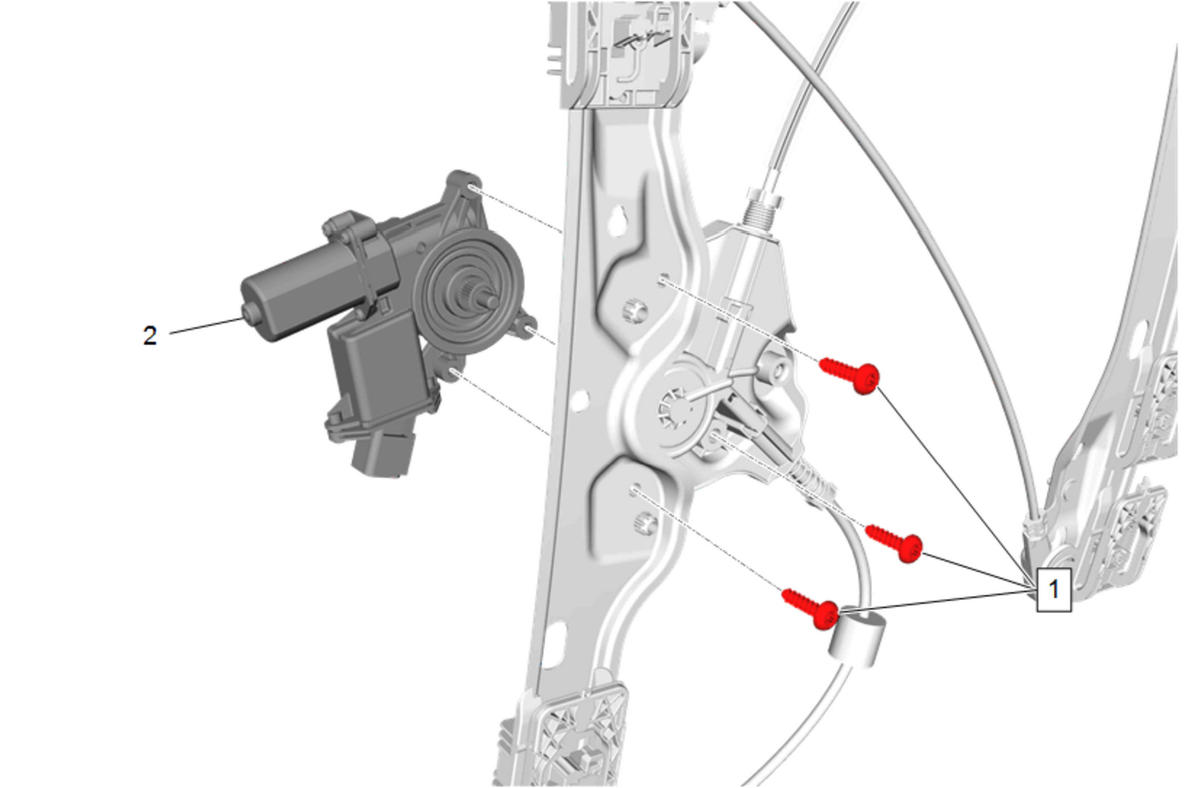

GM5591583

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front Side Door Window Regulator Replacement

1

Front Side Door Window Regulator Motor Bolt [3x]

CAUTION:

Fastener Caution

Tighten
11 N.m (97 lb in)

2

Front Side Door Window Regulator Motor

Procedure

Perform the necessary programming and setup procedure: Window Motor Programming - Express Function
Inspect the door window for proper operation before installing the door trim panel.
