Front Side Door Latch Striker Replacement

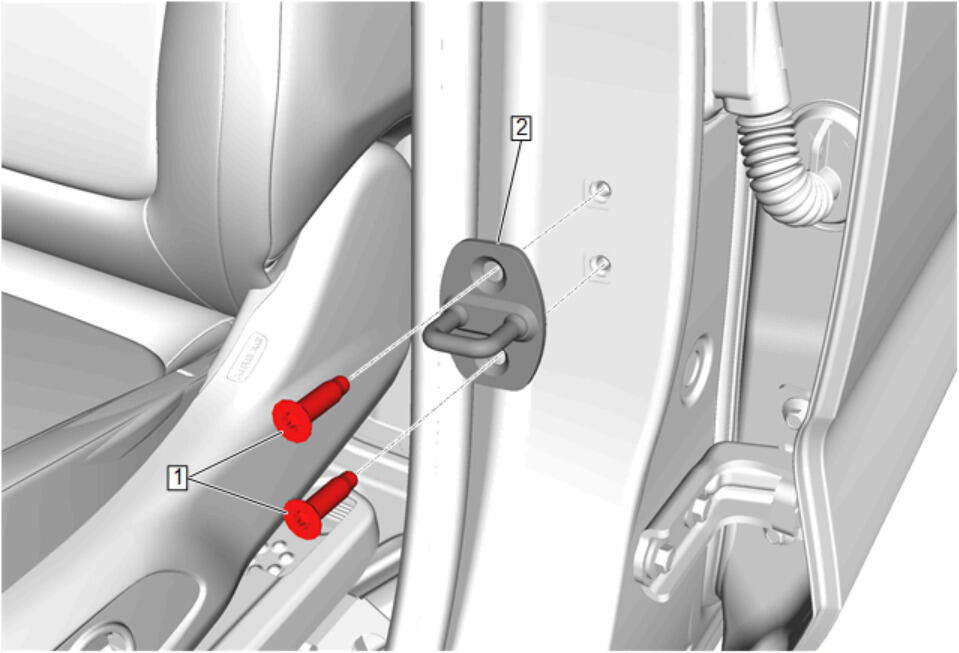

GM5220275Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Latch Striker Bolt [2x]
CAUTION:

Fastener Caution


Tighten
22 N.m (16 lb ft)
2 Front Side Door Latch Striker
Procedure
Adjust the front side door latch striker after replacing, if necessary. Front Side Door Latch Striker Adjustment
