Multimedia Receptacle Replacement

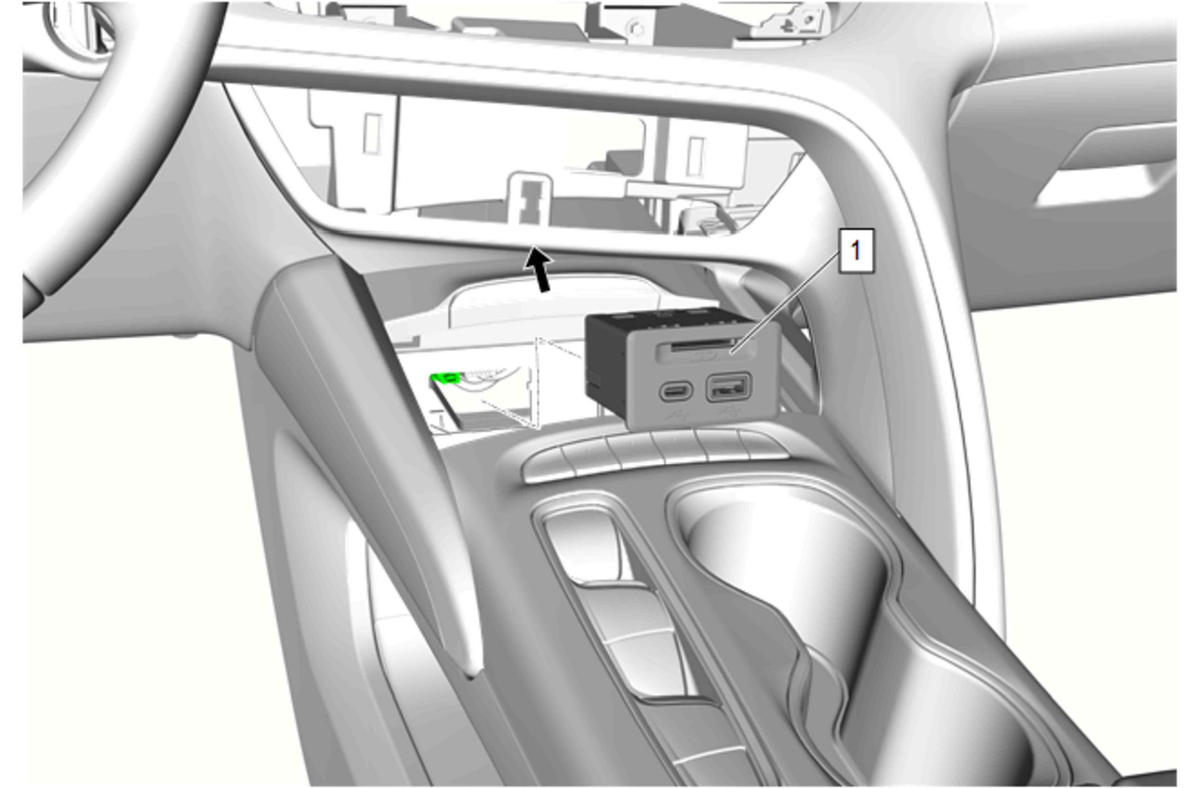

GM5573329Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Multimedia Receptacle

Procedure

  1. Push forward the front floor console center compartment cover to access to the receptacle.
  2. Use a flat-bladed tool to release the receptacle.
  3. Disconnect the electrical connector.
