Installation Procedure

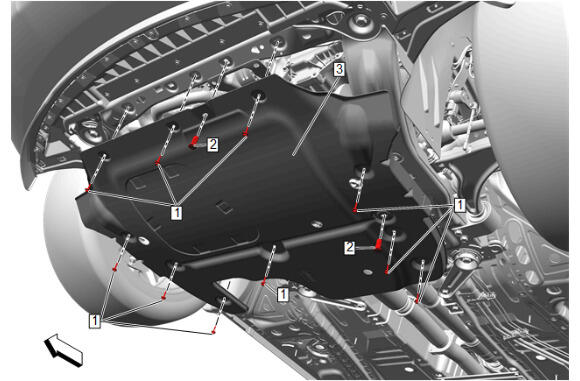

  1. GM5582467Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Air Deflector (3) - Install

  2. Front Compartment Air Deflector Retainer (2) - Install [2x]
    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Compartment Air Deflector Bolt (1) - Install and tighten [10x] 2.5 N.m (22 lb in)

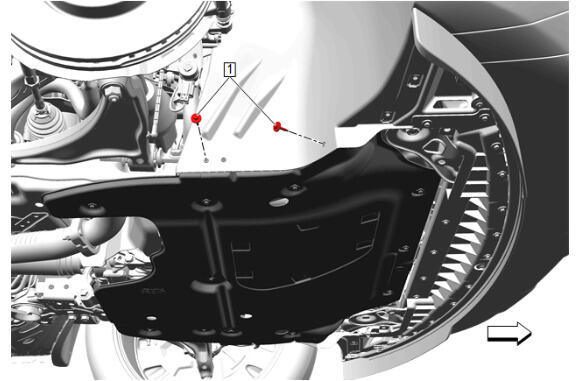

  4. GM5582466Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Air Deflector Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

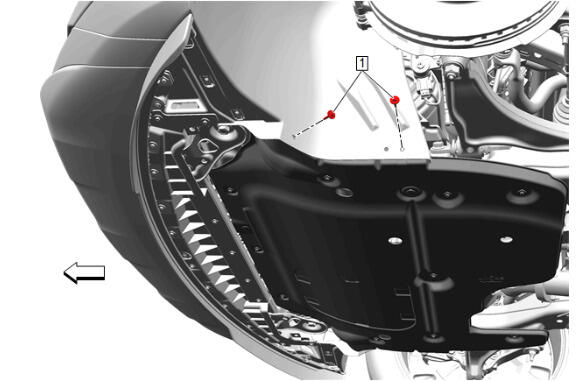

  5. GM5582465Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Air Deflector Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

  6. Remove the support and lower the vehicle. Lifting and Jacking the Vehicle
