Buick
>>
2021
>>
Encore Preferred, 1.4L Eng VIN M, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Cellular, Entertainment, And Navigation System - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Schematics (Buick)
>>

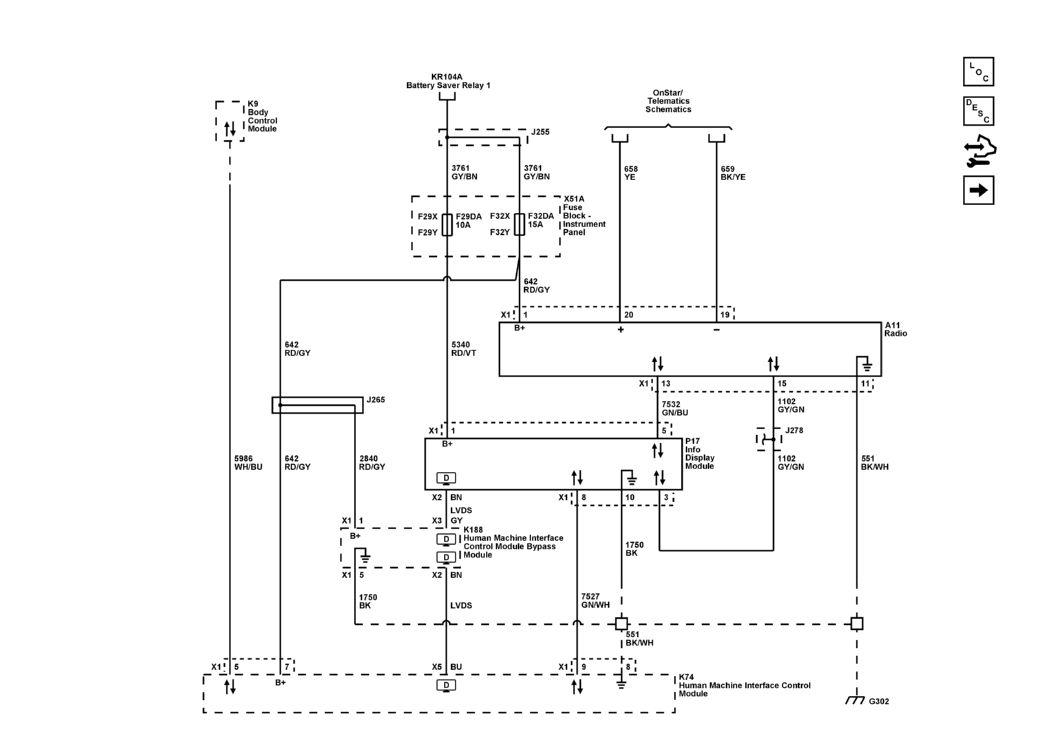

Power, Ground, Serial Data, Info Display, Video Processing Control Module, and Human Machine Interface Module (Buick with IO5)
Power, Ground, Serial Data, Info Display, Video Processing Control Module, and Human Machine Interface Module (Buick with IO5)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
