Intake Air Baffle Replacement

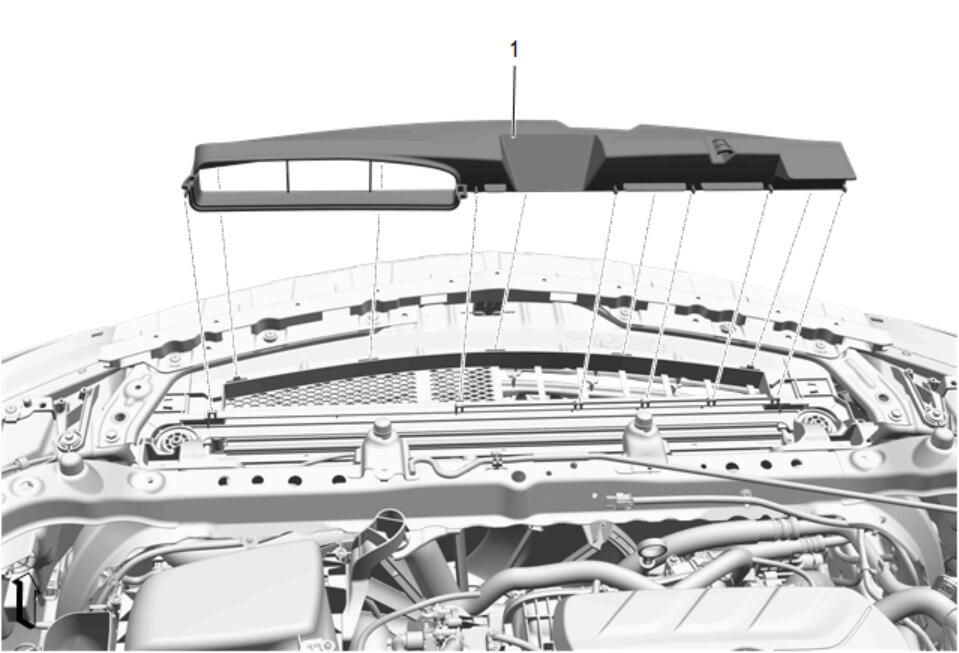

GM5209012Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia Replacement
  2. Intake Air Duct Replacement
  3. Hood Primary and Secondary Latch Replacement
1 Intake Air Baffle
Procedure
Release the retainer tabs and remove the intake air baffle from the radiator air upper baffle.
