Home >> Buick >> 2021 >> Encore GX Select, 1.2L Eng VIN 2 >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Schematic Wiring Diagrams >> Antilock Brake System Schematics >> Module Power, Ground, and Subsystem References

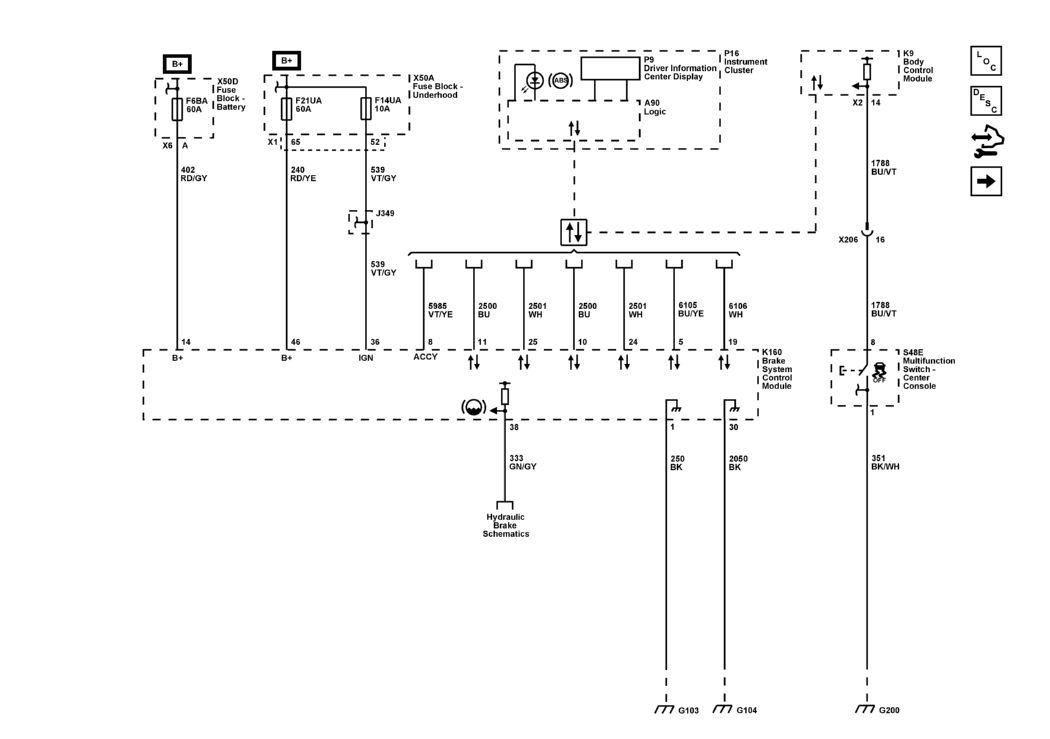

Module Power, Ground, and Subsystem References

GM5464824

Courtesy of GENERAL MOTORS COMPANY
