Home >> Buick >> 2021 >> Encore GX Select, 1.2L Eng VIN 2 >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Secondary And Configurable Customer Controls >> Schematic Wiring Diagrams >> Steering Wheel Secondary/Configurable Control Schematics >> Drive Mode Switch

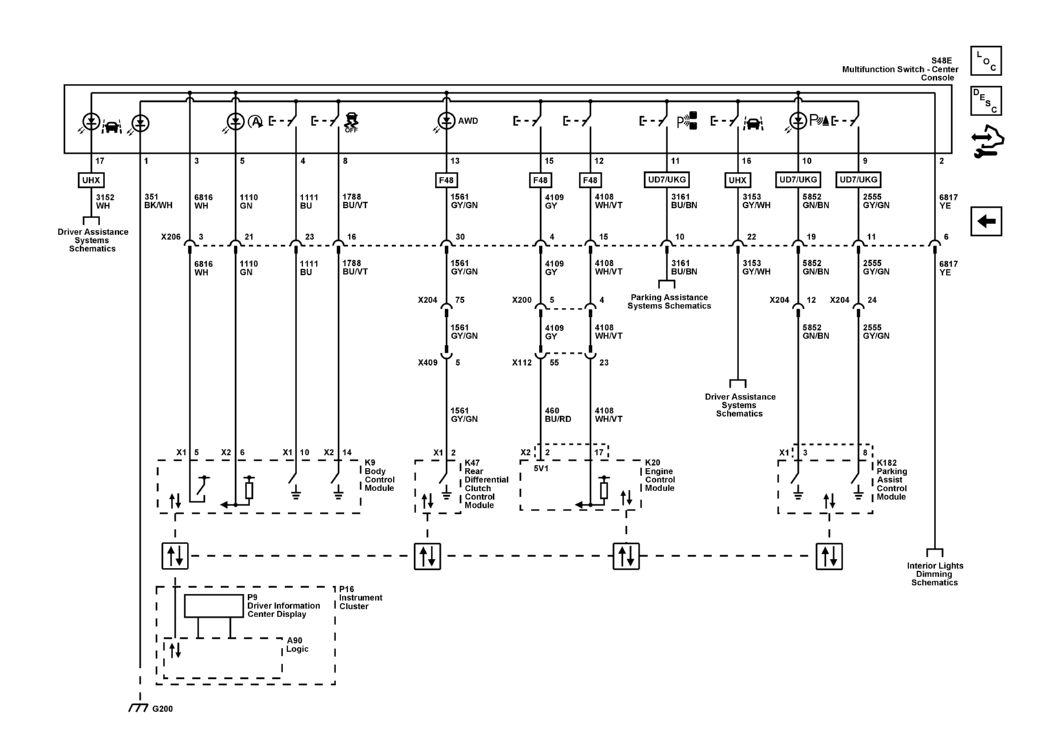

Drive Mode Switch

GM5834295Courtesy of GENERAL MOTORS COMPANY
