Radio Control Assembly Replacement

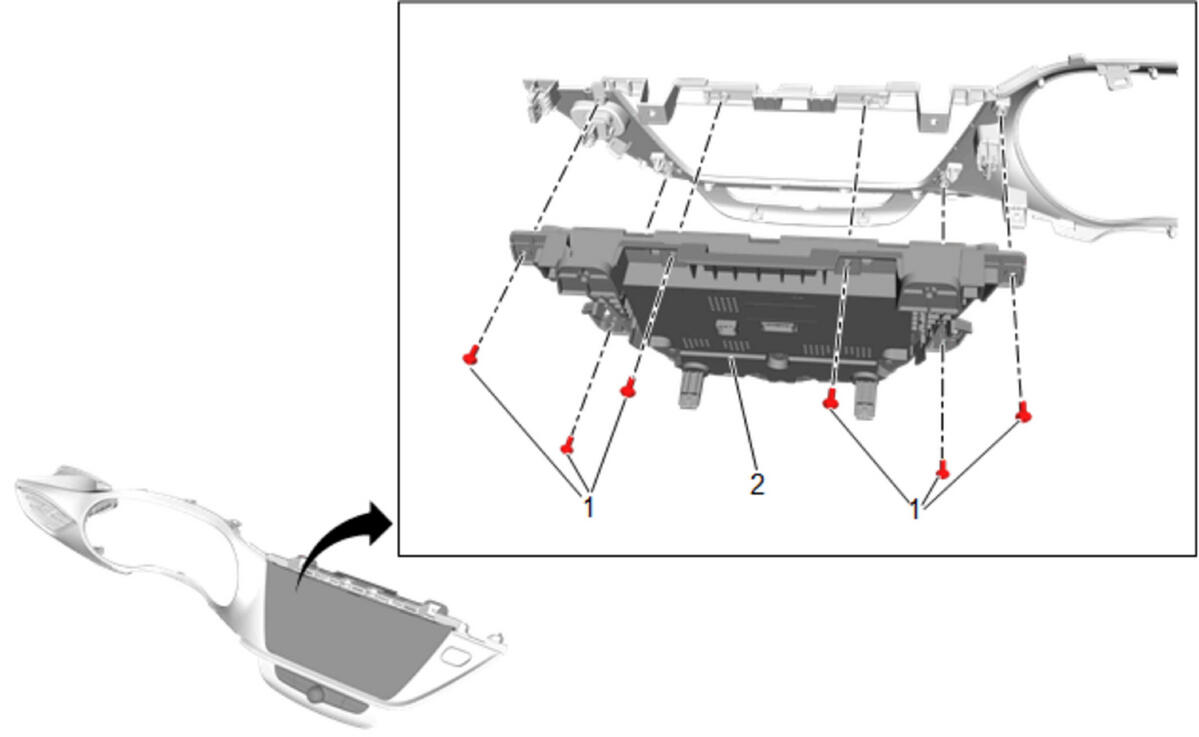

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Trim Plate Replacement |
|
| 1 | Radio Control Bolt [6x]
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Radio Control Procedure If required, perform the programming and setup procedures. Control Module References for programming and setup procedures, if required. |
