Fan Control Module Replacement

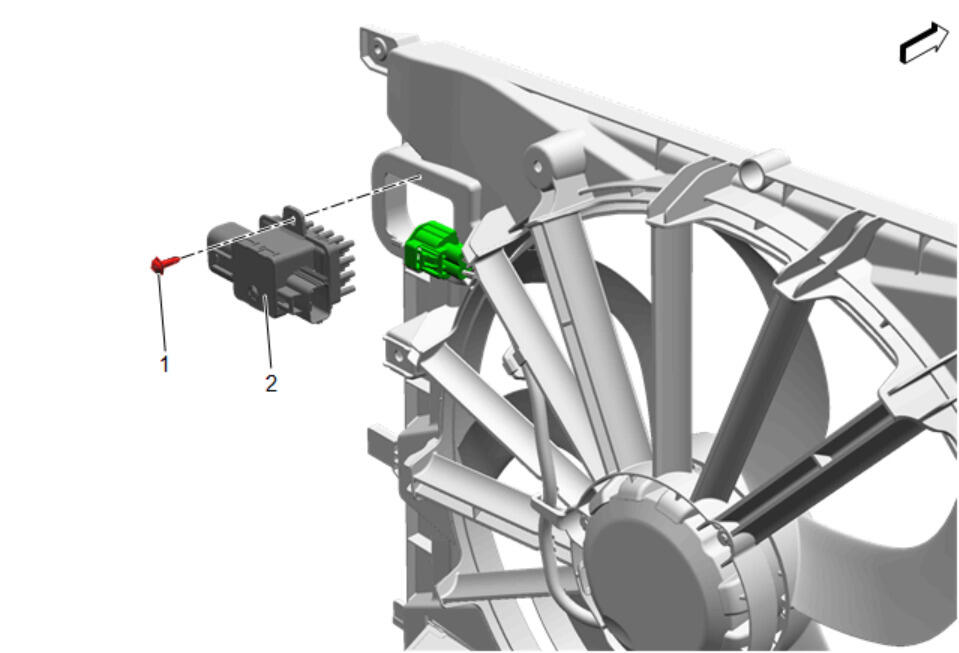

GM5280950Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Cleaner Assembly Replacement
1 Fan Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Fan Control Module
Procedure
Disconnect the electrical connectors.
