Home >> Buick >> 2021 >> Encore Base, 1.4L Eng VIN M >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Schematics (Buick) >> Shift Lock Control (Buick)

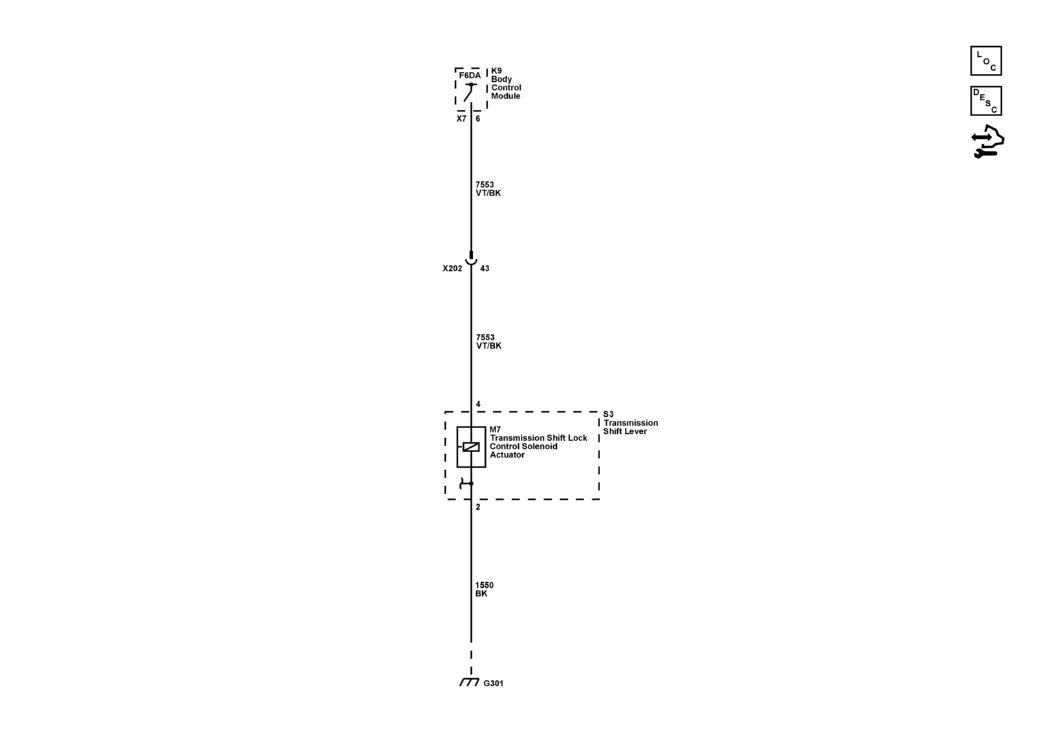

Shift Lock Control (Buick)

GM5455187Courtesy of GENERAL MOTORS COMPANY
