Section 90 (Data Communication System - Schematic Wiring Diagrams)
>>
Schematic and Wiring Diagrams
>>
Data Communication Wiring Schematics
>>

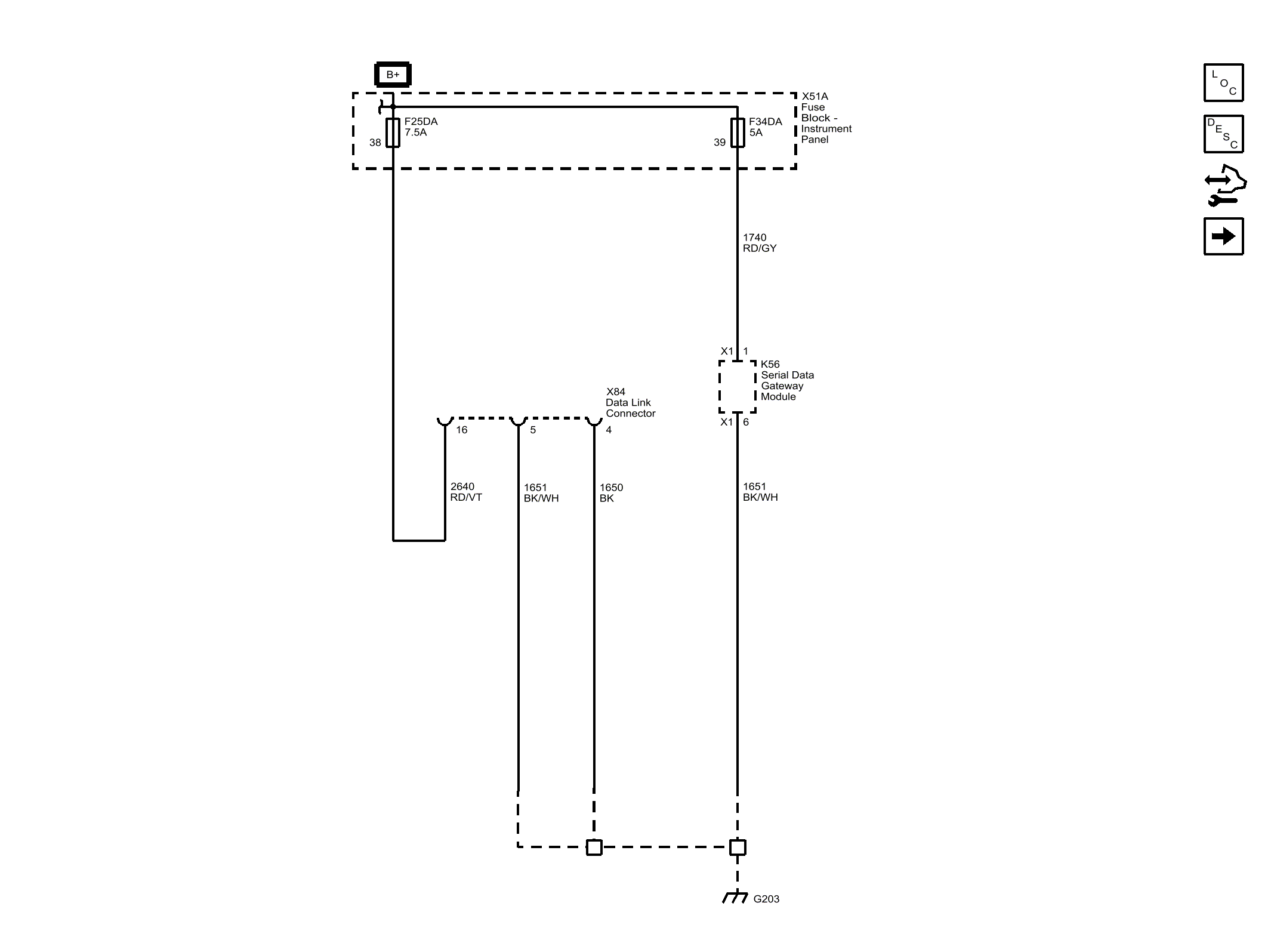

Data Link Connector and Serial Data Gateway Module Power and Ground
Data Link Connector and Serial Data Gateway Module Power and Ground
WARNING:
This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
