Mode Control Cam Actuator Replacement

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

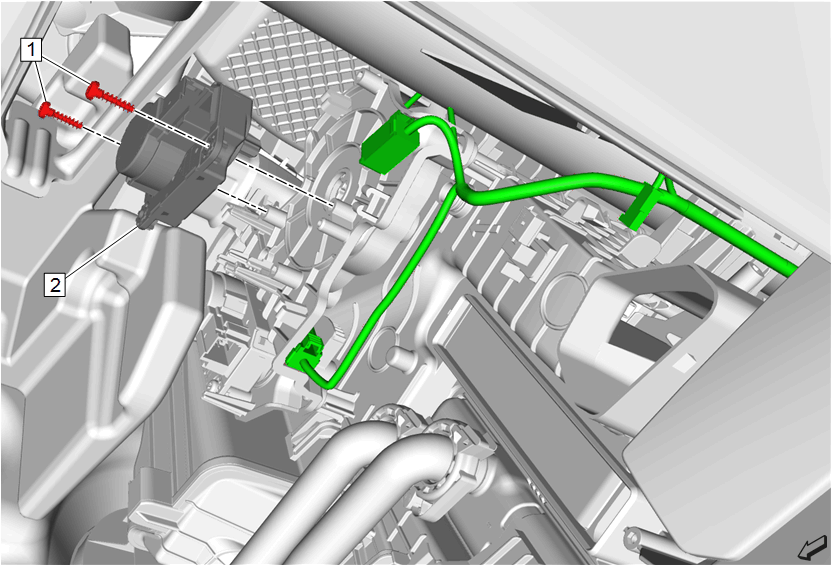

Callout	Component Name
Preliminary Procedure: Floor Front Air Outlet Duct Replacement - Left Side
1	Mode Control Cam Actuator Bolt[2x] CAUTION: Fastener Caution Tighten 2.5N.m (22 lb in)
2	Mode Control Cam Actuator Procedure Disconnect the electrical connector. Control Module References - Programming and Setup

Callout

Component Name

Preliminary Procedure: Floor Front Air Outlet Duct Replacement - Left Side

Mode Control Cam Actuator Bolt[2x]

CAUTION:

Fastener Caution

Tighten
2.5N.m (22 lb in)

Mode Control Cam Actuator

Procedure

Disconnect the electrical connector.
Control Module References - Programming and Setup
