Front Suspension Automatic Forward Lighting Position Sensor Replacement

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

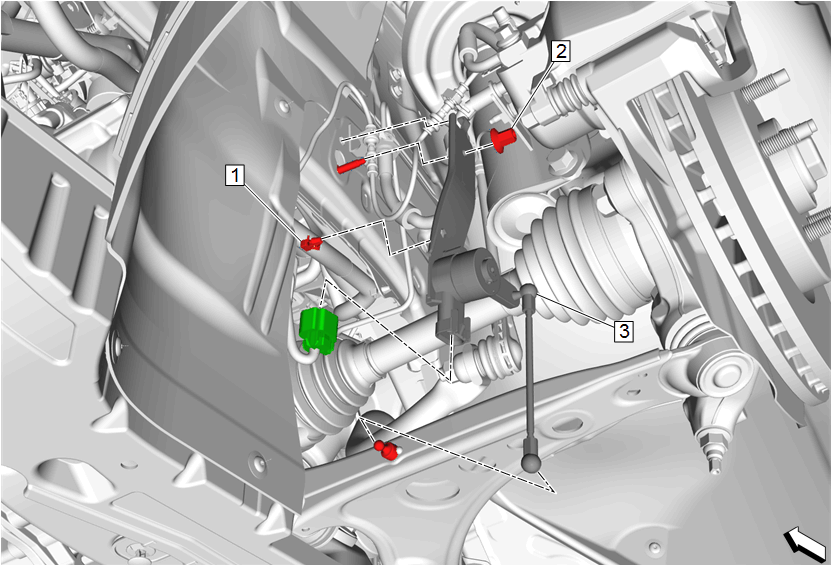

Callout	Component Name
Preliminary Procedure Tire and Wheel Removal and Installation
1	Retainer
2	Front Suspension Automatic Forward Lighting Position Sensor Nut CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
3	Front Suspension Automatic Forward Lighting Position Sensor Procedure Disconnect the electrical connector. Unlock the retaining tabs. Run all necessary programming and setup procedures. Control Module References
