Installation Procedure
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Air Conditioning Condenser Bracket (1) - Install

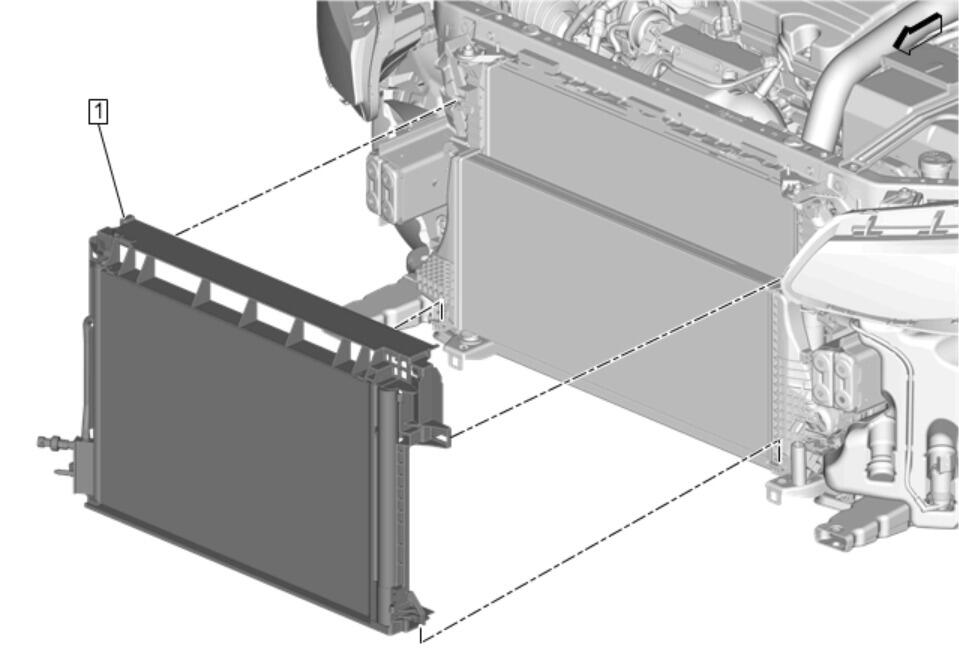

Air Conditioning Condenser Assembly (1) - Install
- Radiator Air Lower Baffle - Install - Radiator Air Lower Baffle Replacement

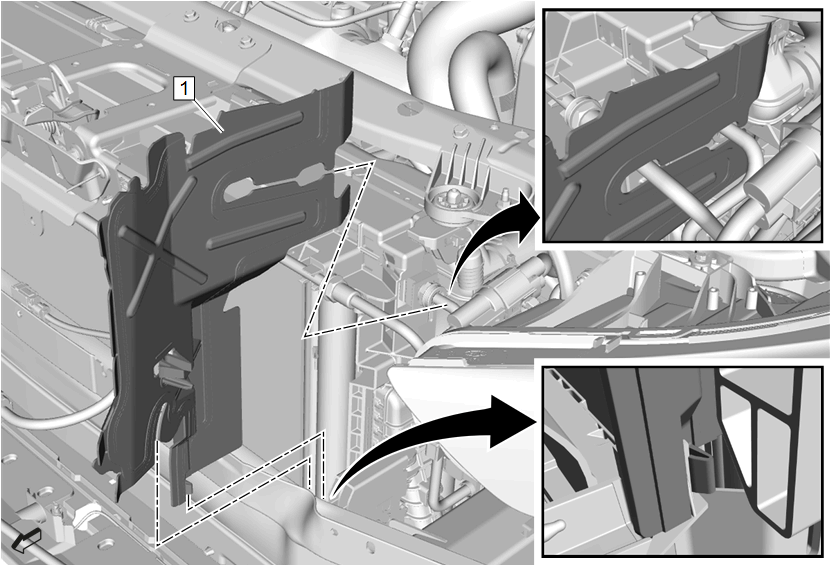

Radiator Air Side Upper Baffle - Left Side (1) - Install - Radiator Air Side Upper Baffle Replacement - Left Side

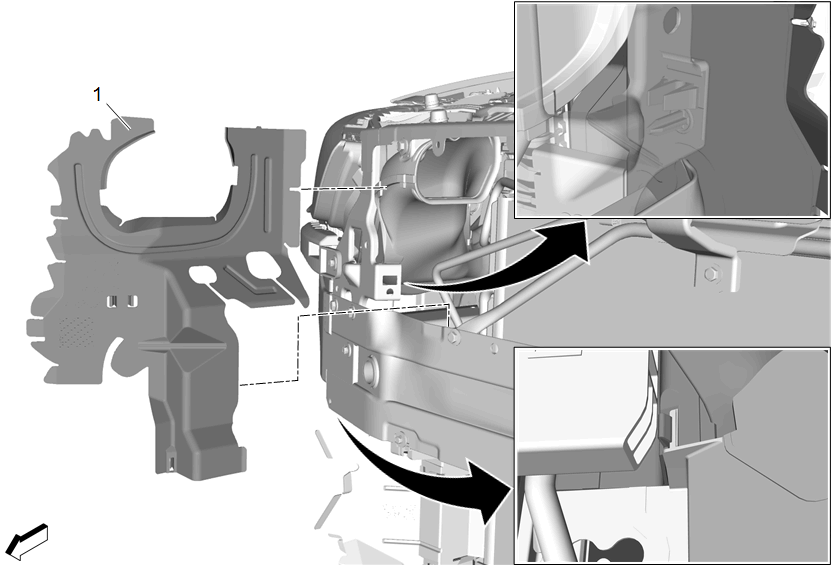

Radiator Air Side Upper Baffle - Right Side (1) - Install - Radiator Air Side Upper Baffle Replacement - Right Side

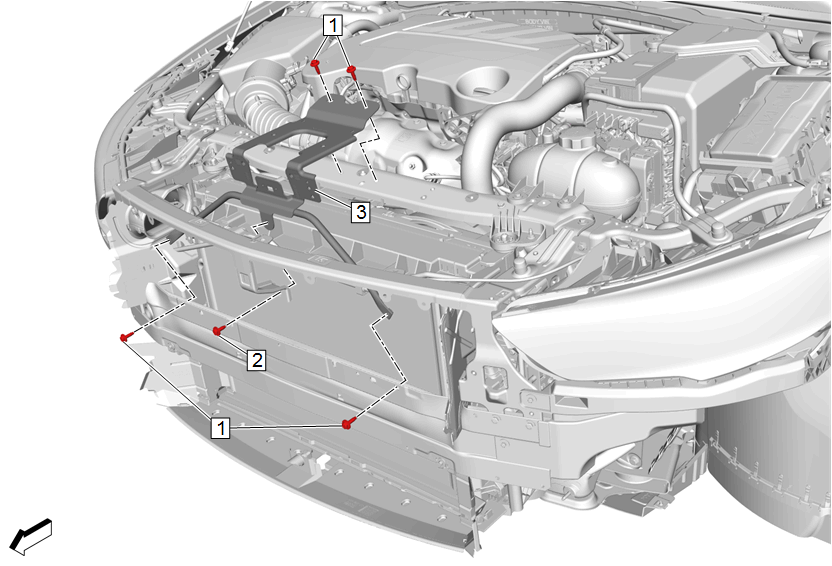

Hood Primary Latch Mount Panel Bracket (3) - Install - Hood Primary Latch Mount Panel Bracket Replacement

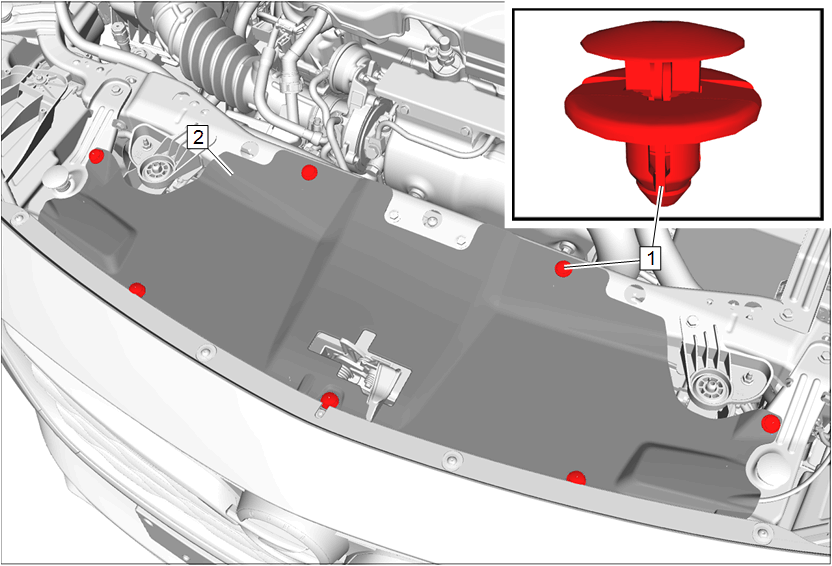

Radiator Air Upper Baffle (2) - Install - Radiator Air Upper Baffle Replacement

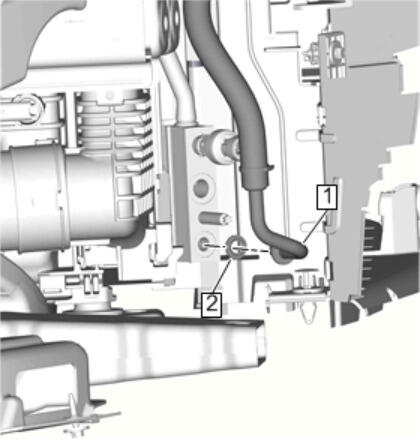

Air Conditioning Evaporator Tube (1) @Air Conditioning Condenser Assembly - Install - Air Conditioning Evaporator Tube Replacement (LTG) Air Conditioning Evaporator Tube Replacement (LGX)
- Recharge the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
