Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air conditioning compressor hose to the vehicle.
  2. GM4433681Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Retainer (4) - Engage - BATTERY POSITIVE AND NEGATIVE CABLE REPLACEMENT

  3. GM4444636Courtesy of GENERAL MOTORS COMPANY

    Connect the generator electrical connectors. - GENERATOR REPLACEMENT (2.0L LTG) or GENERATOR REPLACEMENT (3.6L LGX)

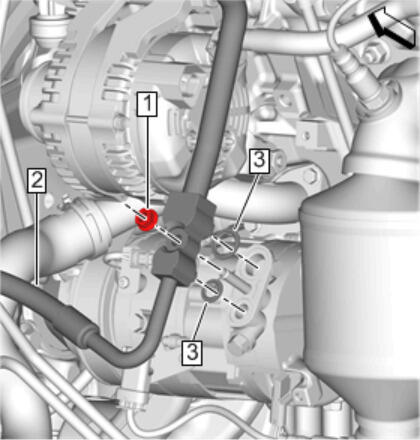

  4. GM4452759Courtesy of GENERAL MOTORS COMPANY

    Install NEW sealing washers. (3) [2x]

  5. Air Conditioning Compressor Hose (2) @Air Conditioning Compressor - Install
    6. CAUTION:

    Refer to Fastener Caution .

  6. Air Conditioning Compressor Hose Nut (1) @Air Conditioning Compressor - Install and tighten 22 N.m (16 lb ft)
  7. GM4455298Courtesy of GENERAL MOTORS COMPANY

    Install a NEW sealing washer. (1)

  8. Air Conditioning Compressor Hose (2) @Air Conditioning Condenser - Install
  9. Air Conditioning Compressor Hose Nut (3) @Air Conditioning Condenser - Install and tighten 22 N.m (16 lb ft)

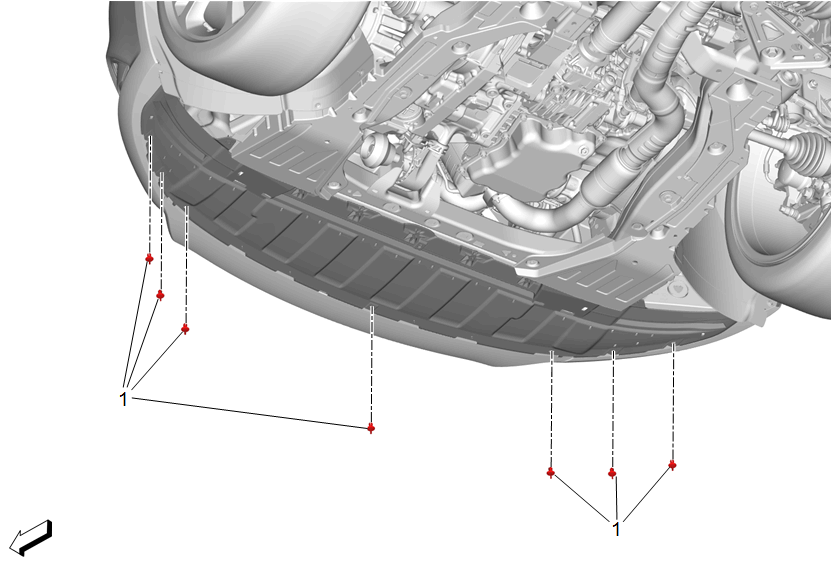

  10. GM4626875Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Lower Stiffener (2) @Front Bumper Fascia - Install - Front Bumper Fascia Lower Stiffener Replacement (Standard)Front Bumper Fascia Lower Stiffener Replacement (YWC)Front Bumper Fascia Lower Stiffener Replacement (GS)

  11. GM4452761Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Hose (2) @Camshaft Cover - Install

  12. Air Conditioning Compressor Hose Nut (1) @Camshaft Cover - Install and tighten 9 N.m (80 lb in)
  13. GM4452762Courtesy of GENERAL MOTORS COMPANY

    Install a NEW sealing washer. (3)

  14. Air Conditioning Compressor Hose (2) @Air Conditioning Refrigerant Heat Exchanger - Install
  15. Air Conditioning Compressor Hose Nut (1) @Air Conditioning Refrigerant Heat Exchanger - Install and tighten 22 N.m (16 lb ft)
  16. Recharge the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
  17. Check for refrigerant leaks.
