Cargo Net Bracket Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

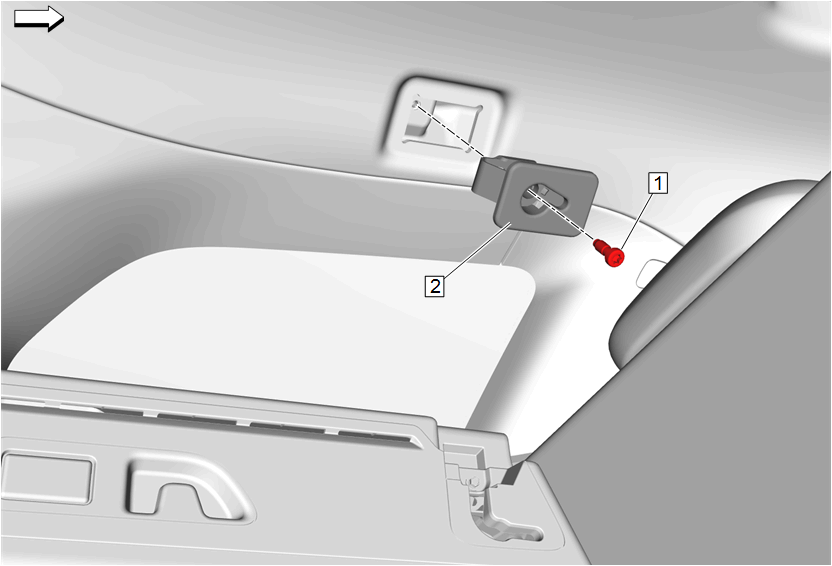

GM4745231Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Cargo Net - Remove
1 Cargo Net Bracket Bolt
CAUTION:

Fastener Caution


Tighten
20 N.m (15 lb ft)
2 Cargo Net Bracket
