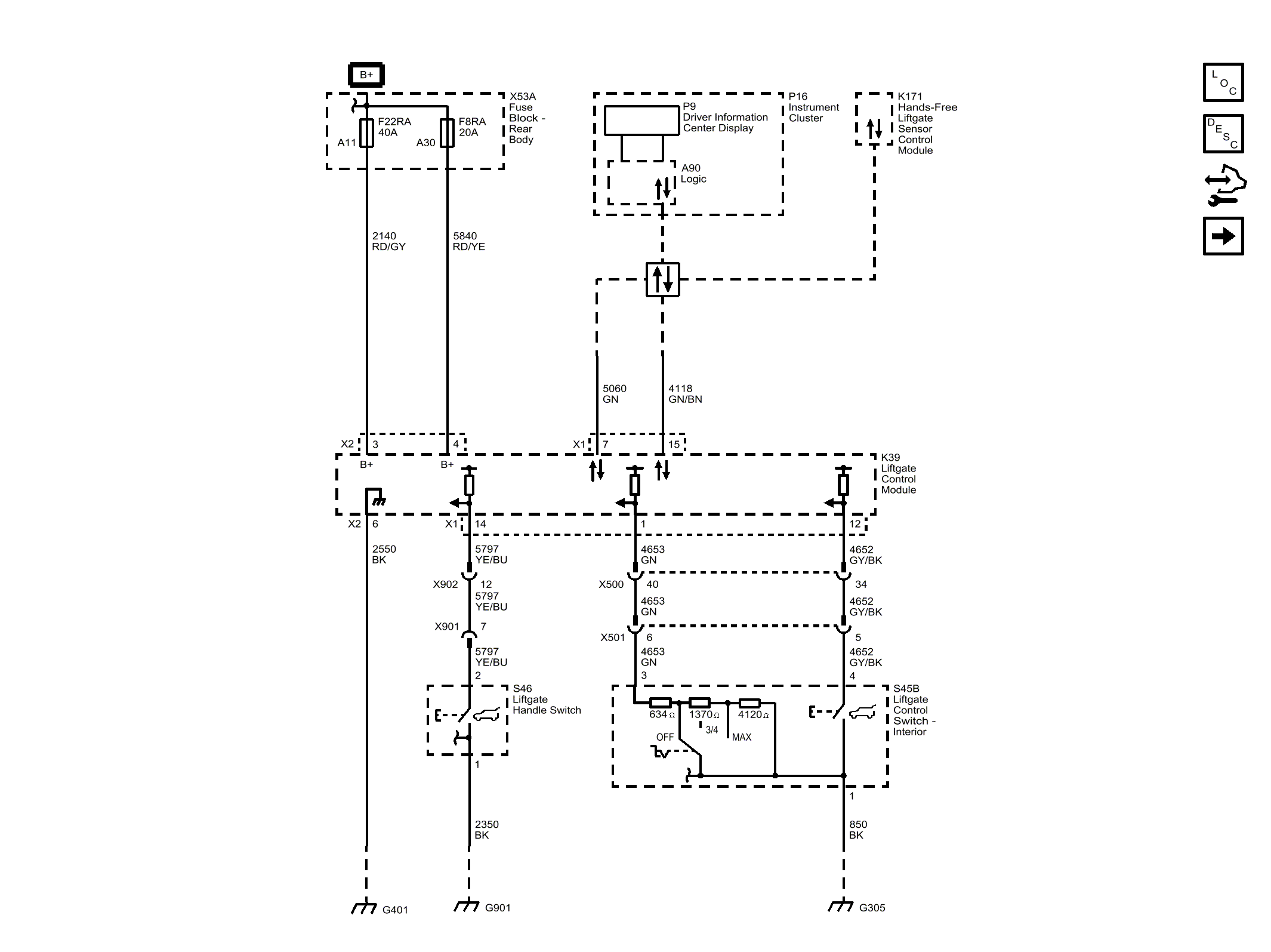

Power, Ground, Serial Data and Controls (TC2)

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
GM4775756Courtesy of GENERAL MOTORS COMPANY
