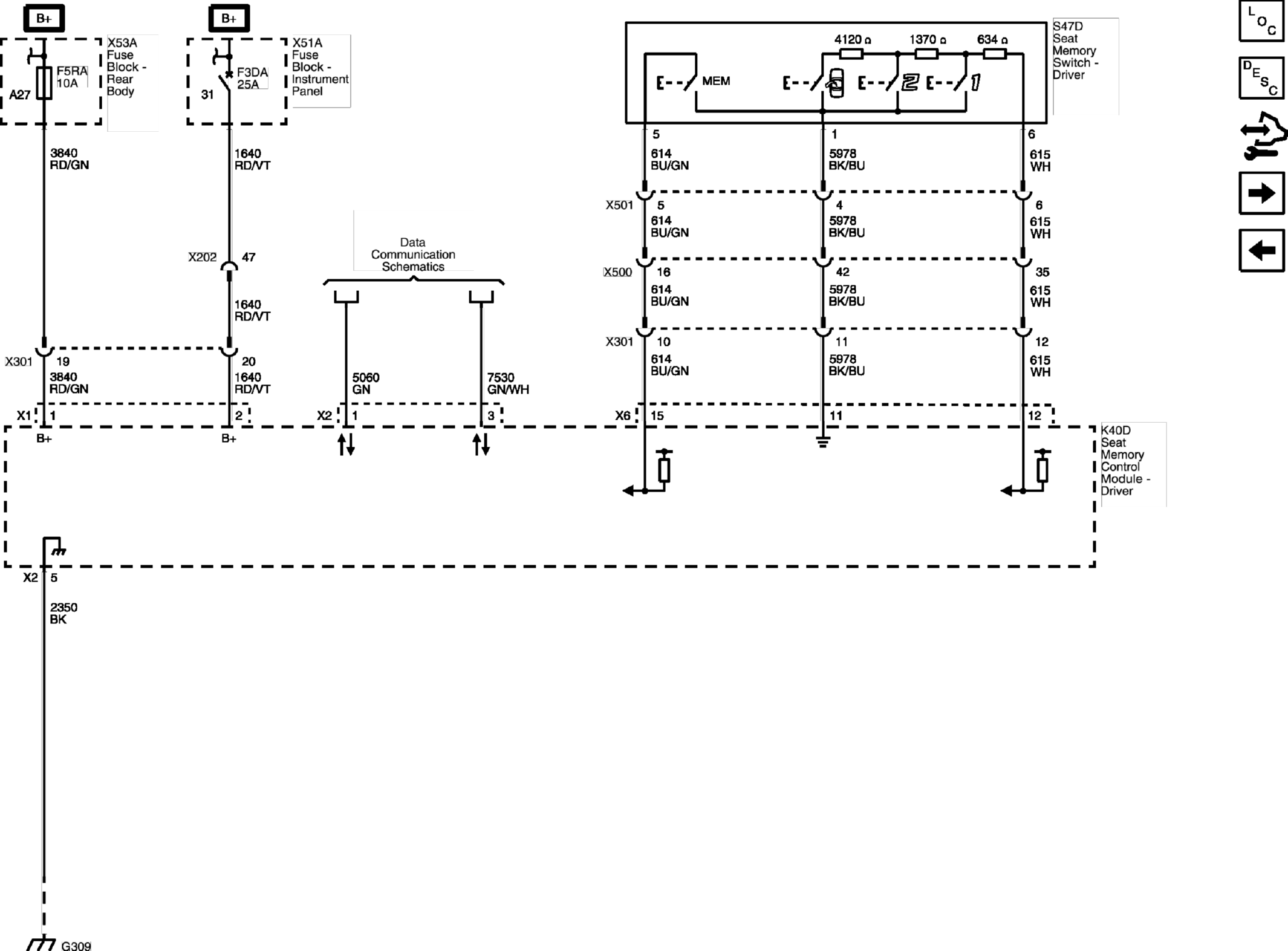

Module Power, Ground, Serial Data, and Memory Controls (A45)

GM5156423

Courtesy of GENERAL MOTORS COMPANY
